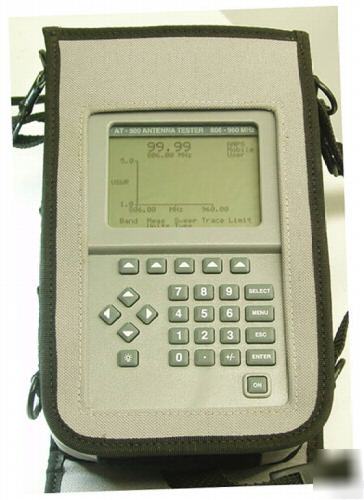

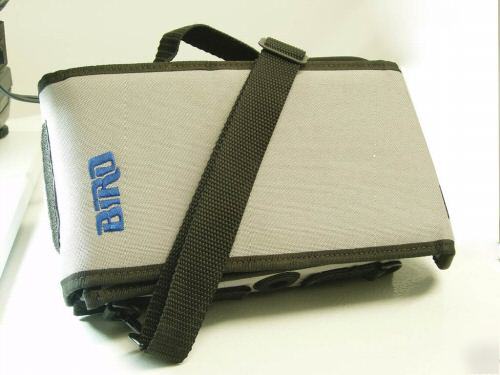

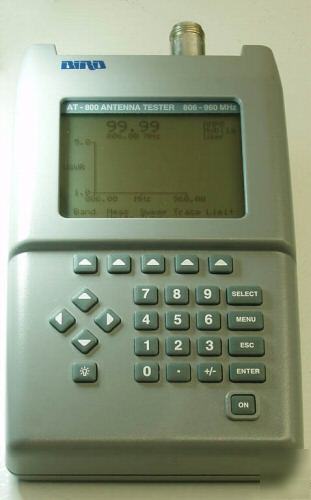

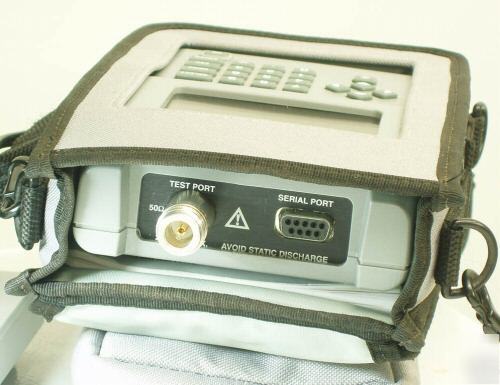

* Battery powered for portable operation anywhere * Measures, VSWR, Return Loss, Match Efficiency or Reflection Coefficient * EIA-232 port interfaces to a PC with optional cable and software * Up to 12 measurements can be stored in non-volatile memory The Bird AT-Series Antenna Testers provide a cost-effective, fast, graphical way of determining the quality of mobile and base station antennas. The unit can display single frequency or swept readings scaled in either VSWR, return loss or match efficiency and can save up to 12 traces for comparison or later archiving with an optional cable and PC software package. This tester will act as a very broad band field strength meter! Unit is in "like new" condition. Item includes: Tester, N connetor adapter, A.C. charger-adapter and Soft Case. 0 to 100% (relative) sensitivity for full-scale deflection: 3m @ 12.6 W ERP Serial (female DB-9 connector) VSWR: 1.00-99.99, Match Efficiency: 0.0 to 100.0%, Return Loss: 0.0 to -32.0 dB Single Frequency: 5 readings/second, Swept Frequency: 1 sweep/second 0°C to 50°C (32°F to 122°F) Batteries: 6 rechargeable AA (KR-15/51). External DC: 11-16 Vdc. External AC Adapter: 108-132 VAC @ 57-63 Hz, or 207-253 VAC @ 48-52 Hz 8" H x 4 5/8" W x 1 3/4" D (205 x 118 x 42 mm) -41°C to 71°C (-40°F to 160°F) Impedance: 50 ohms, nominal. Connector TNC (F) Good Luck and thanks for looking! (please look at our rules and privacy policy) |
