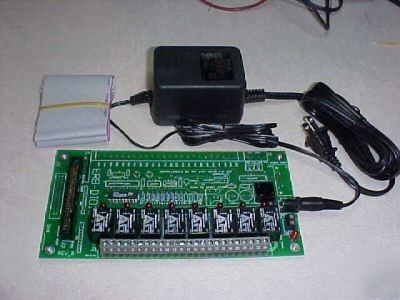

ER8-DIO16-50pin-24vdc Relay Board Qty 1 #500001 24v LABVIEW compatable !!! This is a great low cost alternative to the standard National Instruments ER8 for $330 but with more features !!!!! INCLUDES: 24vdc 2.1mm Power supply and 50 pin ribbon cable The fun part about Labview is actually controlling something......This Relay DIO board is better than the standard ER8 because of the following features: * It has 8 high current standard 10 amp relays with 8x3 (NO-COM-NC) high current screw terminals. The standard ER8 has only 3 amp capability. * There are about 15 different mfgs of this relay (AROMAT JS1 SERIES or equiv). The 50 pin and 26 pin control connectors are compatable with the standard DIO-24 and 26 pin input. * Another feature of the ER8-DIO16 is the input power. A full wave bridge rectifier allows the power input to be AC or DC. * It also prevents you from miss wiring the polarity of the input voltage. (a vary common error for DC).. * The power input also has a 1 amp fuse, a power indicator Led, a 2.1mm wall wart plug and 2 screw terminals for direct connect. * The pcb is mounted on 1/4" standoffs for tabletop or panel mounting The biggest feature of the ER8-DIO16 is the variety of ways that the unit can be controlled when fully populated. The board is designed for additional parts to be added but the 8051 derivative MICRO KIT for RS232 control, i2c control, or direct control by micro and the real time clock and eeprom are not included schematic & pcb layout available in pdf form ....see below /images/500001/100004REVB-11-09-03dim1.pdf /images/500001/ER8-12VDC-PARTSLIST.pdf Parts List /images/500001/er8-dio16-schematic.pdf Schematic /images/500001/500001-Assembly-Instructions-ER8-Relay-bd.pdf Assembly Instructions See our line of DAQ Equipment which includes 50 Pin Breakouts starting at $24.95 100 Pin Breakouts and Relay Boards 68 Pin Adapters starting at $9.95 68 Pin Breakouts starting at $49.95 New! 50 Pin & 68 Pin DAQ Breadboard EZ-Connect Systems ( which gives you INSTANT ACCESS to your DAQ Card ) National Instruments DAQ & Labview Equipment available daq stuff store Check out my other items! 500001-24v w/cable & power supply (please look at our rules and privacy policy) |
