New hbm wagezelle 10 kg bending beam load cell Z6FD1


Article Sent By: madeline-gross@machine--tools.com (Madeline Gross)
Madeline Gross is presenting: New hbm wagezelle 10 kg bending beam load cell Z6FD1

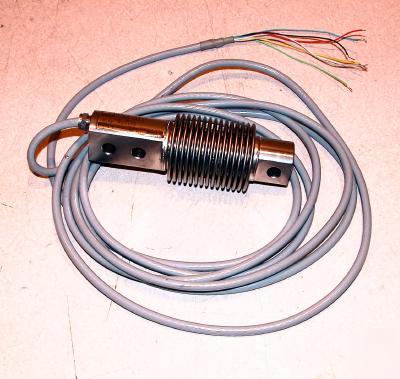

HBM Wagezelle 10 Kg Bending Beam Load Cell Z6FD1 NEW
HBM Wagezelle 10 Kg Bending Beam Load Cell Z6FD1 NEW
HBM Wagezelle 10 Kg Bending Beam Load Cell Z6FD1 NEW
HBM Wagezelle Bending Beam Load Cell
Load cells and mounting aids entirely made from stainless steel
Maximal numbers of load cell verif. intervals (nLC): 1000
Minimum load cell verification interval (vmin): 0.0360 % of Emax
Tolerance on sensitivity: +1; 0.1 %
Temperature effect on sensitivity (TKC)2): +/-0.0500 % of
Temperature effect on zero balance (TK0): +/-0.0500 C /10 K
Hysteresis error (dhy)2): +/-0.0500 % of Cn
Linearity deviation (dlin)2): +/-0.0500 % of Cn
Creep (dDR) in 30 min.: +/-0.0490 % of Cn
Input resistance (RLC) (black-blue): 356 +/- 0.2 Ohms
Output resistance (R0) (red-white): 356 +/- 0.2 Ohms
Reference excitation voltage (Uref): 5V
Nominal range of excitation voltage (BU): .5-12V
Insulation resistance (Ris): >5 G
Nominal temperature range (BT): 10...+40 [15...+105] °C [ °F]
Service temperature range (Btu): 30...+70 [20...+160] °C [ °F]
Storage temperature range (Btl): 50...+85 [60...+185] °C [ °F]
Safe load limit (EL): 150 % of Emax
Breaking load (Ed): Greater Than 300 % of Emax
Permissible dynamic load (Fsrel): 100 % of Emax
Deflection at max. load, (snom) approx.: (+/-15 %): 0.3mm
Protection class (IP) acc. to EN60529 (IEC529): IP68
Optimized for parallel connection with corner-preadjustment
Meets today EMC/ESD requirements according to EN 45501
Please email us for other rates.
Visit my Marketworks Gallery! Power Tools for Power Sellers!
Pickup at our warehouse is available for no additional charge by Appointment M-F 10-6 ONLY.
YOU MUST USE OUR CLICKOUT LINK TO PAY BY ANY METHOD
If you are the winner, click the button above to check out right now!
All sales are final. No returns except if item is not as advertised. Any damaged or defective item will be replaced or refunded at our discretion if you notify us within 3 days of receipt of the item.
Thank you in advance; Craig Quality Surplus LLC
