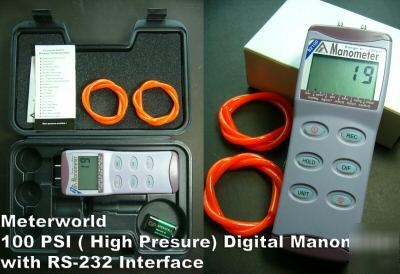

100psi High pressure gauge Manometer with RS-232 output The 82100 high PSI manometer can handle the maximum PRESSURE RANGE up to100 PSI measurement( 150psi abs Max), it MEASURE GAUGE / DIFFERENTIAL PRESSURE, with the HOLD / MAX / MIN / RECORD FEATURES, it easy to send up a direct constant pressure monitor, pneumatic control, industrial monitoring with the simple RS232 INTERFACE, option data logging software is available. ( Special rate at $35) Digital display of gauge or differential pressure. Select from one of 11 pressure units of measure. Hold data, record, Max/ Min, Backlight features. Auto power off preserves remaining battery life. Meter includes hard ABS case, connection hose, battery and manual. Simple fittings for hose connection. Ideal Application: Medical equipment, Computer Peripherals, Pneumatic Controls, HVAC. Dimension:72 x 182 x 30 mm/ 150g. Serial format: Baud rate: 2400 Baud,1 Stop bit,8 Data Bits. PXXX.XX Optional RS232 software (Disk & PC cable). Accuracy : ±0.3%of full scale at +25℃ Repeatability : ±0.2% (Max.+/ -0.5)%FSO. Compensated temperature range : 0~50℃ Operating temperature range : 0~50℃ Storage temperature range : -20~60℃ Combined linearity and hysteresis ±0.29(Max ±1.0)%FSO. Exceeding Maximum Pressure will cause permanent sensor damage. AZ82100 0~100psi Max.Pressure 150psi For warranty parts and service: All purchased are final, will replace defective product only. Return package must be in the original packaging, everything must be in new condition. Missing part’s or anything in original contact will not qualify for any refund. Defective item can be exchanged within 7 days of receipt. Replacement and refunds will not be processed until the return item received. (please look at our rules and privacy policy) |
m.harmon@machine--tools.com (Maurice Harmon) for additional information. This email is used for forwarding to newsgroup user.
