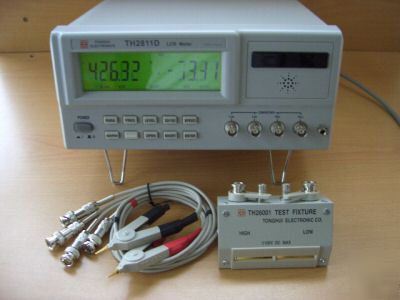

"Professional / High Precision 10KHz Benchtop Digital LCR Bridge Meter" HIGH ACCURACY & RESOLUTION !!! HIGH RELIABILITY & STABILITY FOR WIDE MEASUREMENT RANGE !!! . Wide Capacitance / Inductance / Resistance / Impedance / D Factor / Q Factor Measuring Range : - Capacitance : 0.01pF to 99999uF; - Inductance : 0.01uH to 99999H; - Impedance / Resistance : 0.0001 Ohm to 99.999M Ohms; - Dissipation factor ( D ) : 0.0001 to 9.9999; - Quality Factor (Q ) : 0.0001 to 9999.9; - Percent deviation : -999.99% to 999.99% . Selective test frequency: 100Hz / 120Hz /1KHz / 10KHz; . Selectable output impedance : 30 / 100 ohms; . Selectable test voltage: 0.3V / 1Vrms; . Clear "0" function to eliminate the effect of stray capacitance / inductance from the test leads / test fixture; . Selective Parallel and series equivalent circuit test modes; . 5 ports terminal : HD, LD, HS, LS; . Measuring mode selection: absolute / relative value; . Display: Large LCD display with backlight. 5 digits Primary & secondary parameters display; . Meter supplied with 4 ports test clip leads and test fixture; . Applicable for the following applications : - Capacitor / Inductance characteristic / quality analysis; - Selection of desired / Precise capacitor / Coil / Resistor ; - Test Unknown capacitor / Coil / Resistor; - Finding the "matched" capacitors / Coils / Resistor for circuit design; . Parameters : L-Q , C-D , R-Q, Z-Q; . Test Frequency : 100Hz, 120Hz, 1Khz, 10KHz; . Display : 5 Digits display for primary ( L/C/R )parameters and secondary ( D/Q )parameters ; - Capacitance : 0.01pF to 99999uF; - Inductance : 0.01uH to 99999H; - Impedance / Resistance : 0.0001 Ohm to 99.999M Ohms; - Dissipation factor ( D ) : 0.0001 to 9.9999; - Quality Factor (Q ) : 0.0001 to 9999.9; - Percent deviation : -999.99% to 999.99% . Output impedance: 30, 100ohms; . Ranging Mode : Auto & Manual Mode; . Equivalent Circuit : Parallel and Series ; . Correction : Open and short zeroing; . Measure range mode: auto, hold; . Sample Rate : fast: 15 times/sec, slow: 4.5 times/sec; . Terminals : 5 terminals ( inclusive ground ); . Power supply : 220V AC or 110V AC switch; . Dimensions : 350 X 100 X 340mm; . Accessories : 4 Terminals test leads / 4 terminals test fixture / English Operation Manual / AC Cord; Please ask the postal for other Countries QUANTITY DISCOUNT AVAILABLE !!! If the item damaged upon received, please inform immediately with picture by e-mail within 5 days. After the investigation, we decide to the replacement. - We regret not accept Personal Check; US local Postal Order. Please Feel Free to ask if you have any inquiry. (please look at our rules and privacy policy) |
