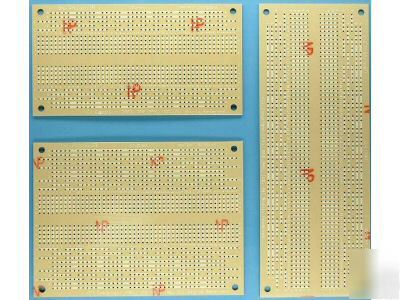

This is a lot of three ONE PASSircuitTM prototyping boards from ONE PAS, INC. allowing complete circuit prototyping in ONE PASS. This lot contains 3 sizes, including 1 each of the OP840B, OP1170B and OP1210B. These boards contain a system of staggered traces (US Patent 6,650,548) that allow signals to flow through placements of other parts thus removing the need for jumpers in many cases. It further creates a Patented four pin socket array that can be used for mounting 3 pin devices that can be turned 360 degrees to avoid crossing signals. Some of these sockets have one connection on the power bus allowing direct power connection for switching devices, removing even more jumpers. Imagine, one small board that can hold 0.6" & 0.3" DIPs and TO92 & TO218 & TO220 and all of your passive devices at the same time! There are also four corner mounting holes for chassis mount and the boards fit in a standard plastic project case available from Radio Shack. The OP840B, OP1170B and OP1210B from ONE PAS, INC. are made of UL approved, CEM1, single sided, 1 oz. copper plated material. They are silk screened on the top showing the tace pattern on the bottom, with alpha numeric grid to aid in layout and are pre-tinned to aid soldering. These are professional grade prototyping tools at hobby prices. More information about ONE PAS, INC. may be found by typing our name into any major search engine. Layout Templates in x2 expanded view are available at our users group in the Files Section, sign up is free at our web site. Canada / Mexico, Global Priority Mail $6.00. World Wide, Global Priority Mail $8.00. NO PERSONAL checks, NO PERSONAL money orders. (please look at our rules and privacy policy) |
