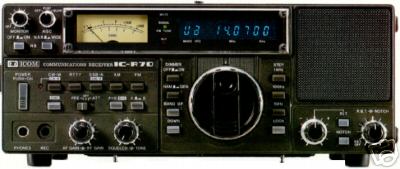

ICOM IC-R70 Shortwave Communications Receiver Excellent condition. Used less than 10 hours! Includes English and Japanese instruction manuals, schematic diagram, and power cord. The IC-R70 covers LW, MW and SW in all modes. It has an analog S-Meter and features squelch, tone, Lock, preamp, atten., RIT, PBT and Notch. The rear panel has antenna inputs for PL259 or Hi-Z and for external speaker and mute. The Icom R70 receiver system is a quadruple conversion superheterodyne covering 100 kHz to 30 MHz with 100 Hz display resolution. Modes of reception includes AM, SSB, RTTY, CW and FM [with EX257 option- not included]. Advanced features include: Pass Band Tuning, IF notch, adjustable AGC, three tuning rates, dual VFOs, Scope Jack, Line Output, RIT, dial lock, converter input jack, adjustable noise blanker and built-in preamplifier. Frequency Range ....... 100 - 30000 kHz Power ................. 117/235 VAC 50/60 Hz Antenna Impedance...... 50 ohm or single wire Selectivity (-6dB) .... AM 6.0 kHz, SSB 2.3 kHz Sensitivity ........... 0.16 µV 1.6-30 MHz SSB/CW (S+N/N=10dB) Spurious Rejection .... >60 dB Freq. Stability ....... 250 Hz After 1 Hour Intermediate Freqs. ... 1st IF = 70.4515 MHz Dimensions............. 11 1/4 x 4 3/8 x 10 7/8 inches Weight ................ 16.3 Lbs. (7.4 kg) (please look at our rules and privacy policy) |
Joy.rice@machine--tools.com (Joy Rice) for additional information. This email is used for forwarding to newsgroup user.
