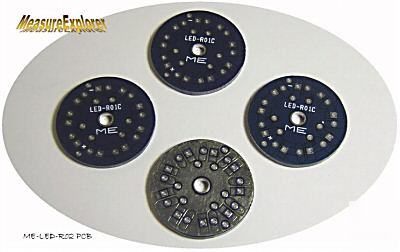

MeasureExplorer LED product: ME-LED-R02 9 LED pod PCB, 4 This is a circular 5mm 9 LED module PCB with 1 inch diameter and FR4 base material. 9 LED footprints locate at a circle with 40 degree rotation to each other. The module is designed for 12V DC running, with simple circuitry of every 3 LED are connected in series to share 1 current limiting resistor. The LED side of the PCB is finished without solder mask for leaving metal surface in order to get good reflection of light to the direction of illumination target. LEDs can be soldered on the PCB vertically to get a intensive light beam vertical to the board surface. Or user can solder the LEDs at a right angle to the board like the picture below to create a emission pattern. Using this PCB users can make their own favorite color combination, may quite different from ones we presented here (please look at our rules and privacy policy) |
C_Lucas@machine--tools.com (Cathy Lucas) for additional information. This email is used for forwarding to newsgroup user.
