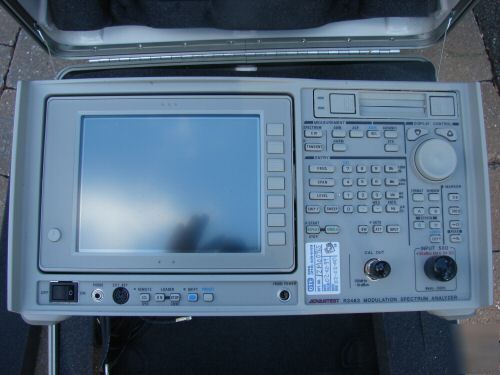

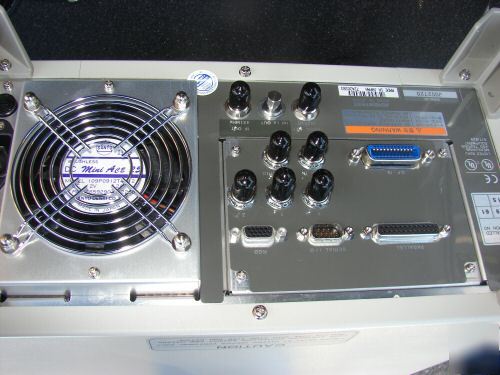

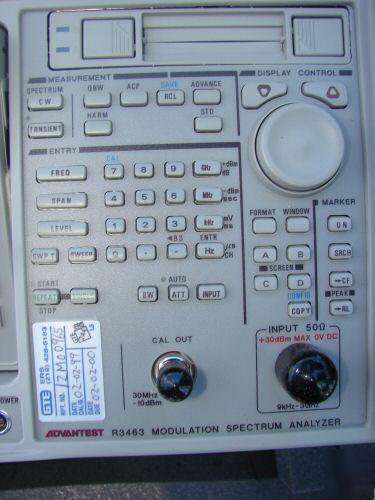

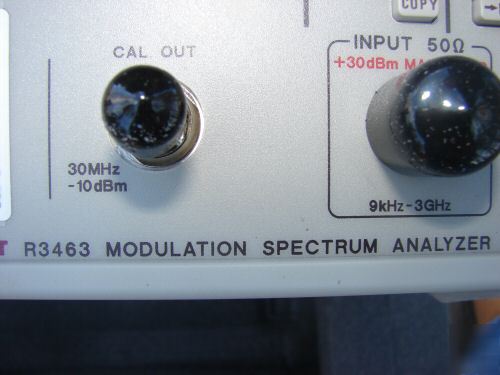

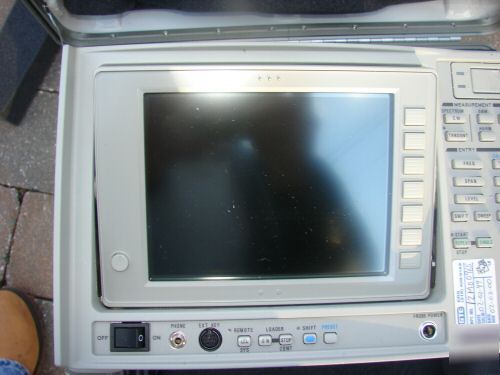

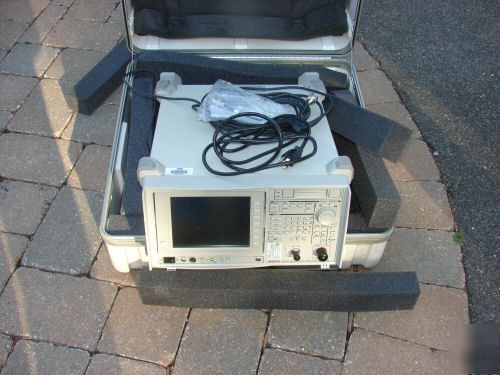

The R3465/3463 are new modulation spectrum analyzers for testing these new communication systems. In addition to the functions offered by conventional spectrum analyzers, the R3465/3463 have functions for analyzing digital modulated signals such as modulation accuracy and transmission speed. The units have an easy-to-use one key solutions design that anyone can use. There are independent keys for STD mode which automatically sets PHS, PDC and NADC standard parameters and OBW, ACP and harmonic distortion measurement. DDS (Direct Digital Synthesizer) technology enables the R3465/ 3463 excellent basic specifications to fit into a compact size 17 kg. These specifications include a frequency range of 9 kHz to 8 GHz (R3465) or 9 kHz to 3 GHz (R3463), highly stable narrow band sweep and high–speed measuring made possible by the newly–developed high speed settling synthesizer. The R3465/3463 provide total support for digital mobile communication equipment in applications ranging from radio systems development to production line adjustment and testing * For PHS, PDC and NADC Standards (GSM/DCS1800/DCS1900/DECT/CDMA Measurement Optional) * Dual Mode Analysis : Spectrum Analyzer Mode ; Digital Transmission Tester Mode * Built-In Digital Modulation Analysis Function * Menu Operation Automatically Set Standard Parameters, STD Mode and Measurement Function Keys * Compact, Lightweight (17 kg), 6.5 Inch TFT Color LCD This Unit was purchased calibrated and never used. (please look at our rules and privacy policy) |
