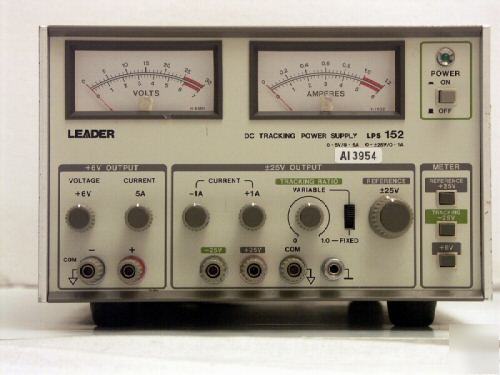

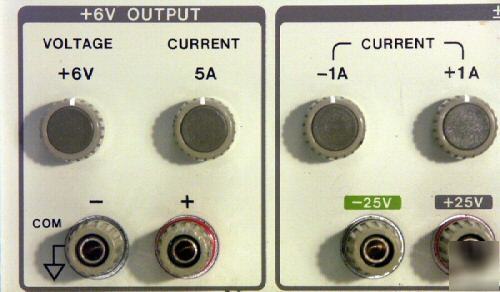

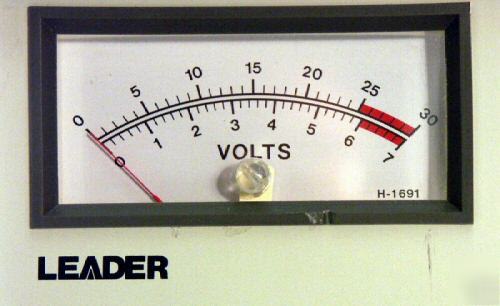

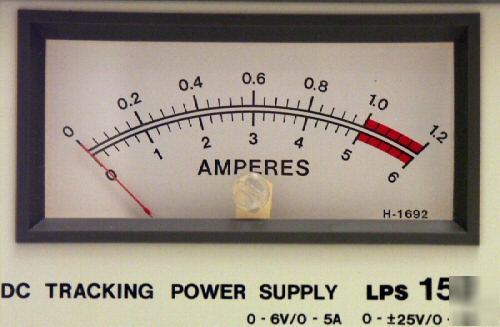

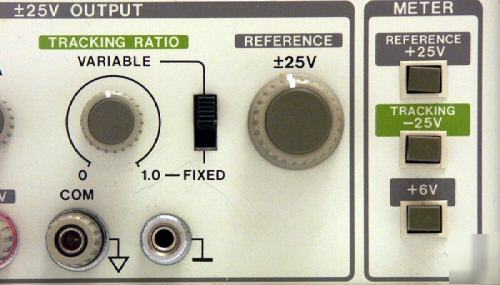

Laboratory Regulated DC Power Supply The Leader LPS-152 is a Triple Output DC Power Supply with individual voltage and current meters, automatic overload recovery and auto tracking. The output voltages are adjustable, 0 to 6 Volts, 0 to +25 Volts and 0 to -25 Volts floating, making it ideal for computer subassembly, circuit board, semiconductor and system burn-in test applications. All three outputs have independent adjustable current limiting with an auto recovery feature which allows the output voltage to return to normal when the short or overload condition is removed. It also features a tracking output mode which allows an adjustable ratio of negative vs positive voltage between the 25 Volt outputs. The adjustment range is from 100% - 100% to 50% - 100%. Ripple is less than 3 mV p-p and output. Regulation is rated at less than 3 mV for +10% input line voltage variation and 0 to 100% load variation. The output voltages are floating and adjustable, 0 to 6 V @ 5 A, 0 to +25 V and 0 to -25 V @ 1 A making it ideal for computer subassembly, circuit board, semiconductor and system burn-in test applications. All three outputs of these used power supplies have independent adjustable current limiting. The unit also features a tracking output mode which allows an adjustable ratio of negative versus positive voltage between the 25 V outputs. The adjustment range is from 100% - 100% to 50% -100%. Ripple is less than 3 mV p-p and output regulation is rated at less than 3 mV. NOTE: Description, Features and Specifications are taken from the manufacturer and therefore I cannot guarantee it's accuracy. Please visit the manufacturer's website for more information. Leader Regulated DC Power Supply Meter Original List Price: $790.90 Used/Refurbished Price: $330.00 8.5" X 6" X 14" (inches WxHxD) 12" X 12" X 12" (inches WxHxD) The output voltages are floating and adjustable, 0 to 6 V @ 5 A, 0 to +25 V and 0 to -25 V @ 1 A making it ideal for computer subassembly, circuit board, semiconductor and system burn-in test applications. Excellent (Item shows very little signs use / wear) Excellent (Item has been tested - Functions 100%) No Accessories with this item. Power cord is attached. All outputs separately adjustable from 0 to a fully loaded at rated max current with automatic recovery. <0.01% + 3 mV for a 0 to 100% load variation <0.01% + 3 mV for a + 10% input line voltage variation 0 to 1.2 A Screwdriver adjustable (from side of case) Negative vs Positive voltage will track at 50% to 100% for +25 Volt outputs. Negative supply cannot exceed 100% of positive supply 100, 120, 200, 220, 240 V AC +10%, 50/60 Hz, approx 220 VA My Approach and Methodology of Selling Items listed "As Functional" are returnable if the item has a problem or is malfunctioning. I can be contacted by using the Contact Member option or by emailing me at: JoeNewkirk(at)usa.net. I usually reply the same day or by the next day. *Note: I can also be reached on my Cell by request. Member since: Feb-20-03 Location: United States Copyright © 1989-2006 MicroTech Systems, Inc. All Rights Reserved. (please look at our rules and privacy policy) |
