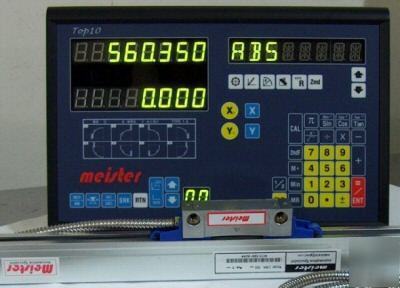

Meister TOP10 2 Axis DRO complete with scales for your Mill Two (2) pieces of linear glass encoders with travel stroke up to 900 mm(36") max. (for information only: add 128mm to get overall length of linear scale) One year warranty direct from factory. Display box swivel mounting arm and English manual provided. Meister DRO and Scales can be used with Anilam, Acu-Rite, Easson, Fagor, Knuth, Mitutoyo, Sargon and SINO. Please contact us if you have any questions. We had sold our DROs to Austria, Australia, Belgium, Canada, Denmark, France, Finland, Germany, Hungary, Ireland, Israel, Italy, India, Japan, Malaysia, Mexico, Netherlands, Norway, New Zealand, Poland, Qatar, Switzerland, Slovenia, Spain, Sweden, United Kingdom and United States. * 1/2 (HALF)- selected axis display is divided by 2 * Scientific Calculator. Result can be directly transferred to the selected axis. * Absolute/Increment Co-ordinate Interchange * Recall - recall the last X and Y positions. * RTN - pause to go to normal operation and return to finish the job. Put the DRO to 'sleep' during break time. * Mechanic Zero Position Memory: re-establish workpiece zero position after power failure. * Holes in a straight or oblique line * Response Speed: 60m/min (198.6feet/min) * Quantizing error: +/- 1 count * Power Source: AC 110 - 220V, 50 - 60 Hz * Temperature range: Operating 0 ~ 40 deg C, Storage: -20 ~ 70 deg C * Display: 8 digits LED display; green color * Dimension: 10.25" x 7.0" x 2.0" (260 x 180 x 50 mm) This Beaver belong to Mark (Australia). * Grating pitch: 0.02mm (50LP/min). * Accuracy: ±0.005 mm or 0.0002"(at 20 deg C). Each scale has ABS reference marks at interval of 50mm. * Response Speed: 60m/min or 40ins/sec * Output Signal: Two square wave signals. TTL output with 90 deg phase difference * Standard 3 metre armoured cable. Scales are manufactured in standard size with travel (measuring length) stroke of: * Metric: 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 500, 520, 550, 570, 600, 620, 650, 670, 700, 720, 750, 770, 800, 820, 850, 870, 900, 1000, 1100, 1200, 1500, 1600, 2000 and 3000 mm. * Inches: 4.5, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34, 36, 40,43.5, 47, 60, and 63 inches. * Factory will take 2 ~ 3 days to process your order. As this may take a while, please allow some time. (please look at our rules and privacy policy) |
