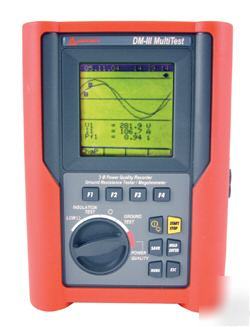

We are wholesaler and Distributor of all Electrical supplies brand name. Email: w.wells@machine--tools.com If you need any assistants please call us. * Measures and Records Broad Spectrum of Power Quality Parameters: AC Current, AC Voltage to 600V including Sags and Surges, Harmonics (THD and individual up to 49th), Active, Reactive and Apparent Power & Energy, Peak Demand, Power Factor, Frequency measurement, Phase sequence * Compatible with wide range of Current Transducers * Comes as a complete kit: CTs, Voltage Leads, Ground Probes & Leads, PC software and download cable are included with this product. * Works with single and three phase systems (Y and Delta) * Detects and records voltage anomalies, Sags and Surges * Built in scope displays waveforms * Records up to 64 parameters (single or three phase) simultaneously * Manual and programmable recording start * Selectable fundamental frequency of 50 or 60 Hz * Special data compression system and user selectable rates allow recording from several hours to several years * Download capabilities, Windows compatible PC software * Displacement power factor for power factor correction determination * Megohmmeter functions: Tests insulation of wires, cables, transformers and electrical motors * Selectable test voltages up to 1000V * Programmable timer to perform the Dielectric Absorption Ratio Test * Sensitive Ohmmeter for checking resistance of motor windings * Selectable polarization of ohmmeter for checking grounding continuity * Automatic voltmeter protects against misuse on hazardous energized systems CATIII, 600V Phase to phase, CATIII, 300V Phase to ground, EN 61010-1+A2(1996) Amprobe’s full-featured Three-Phase Power Quality Recorders provide the essential functions and capabilities required to operate accurately and effectively in today’s demanding electrical environments. DM-CT-DMA 1000A Standard CT 2†internal diameter CT +/-(0.5% Rdg + 2 LSD DM-CT-100:0.5A to 100A / DM-CT-HTA:5 - 1000A /AM-FLEX33: Selectable: 5 – 1000A or 15 - 3000A +/-(0.5% Rdg + 2 LSD) AC Voltage including Sags and Surges: THD, DC and individual up to 49th +/-(0.5% Rdg + 2 LSD) Working (W), Reactive (VAR) and Apparent (VA) +/-(1.0% Rdg + 2 LSD Working (kWh), Reactive (VARh) and Apparent (VAh) +/-(1.0% Rdg + 2 LSD) 57 to 63.6 Hz at 60Hz fundamental 47 to 53 Hz at 50Hz fundamental +/-(1.0% Rdg + 2 LSD) Computes incoming and outgoing energy Selectable Fundamental Frequencies: Several hours to several years depending on setup Insulation resistance with 50 VDC test voltage: 0.01-19.99, 49.9 +/- (2% Reading + 2 digits) 49.9 - 99.9MΩ +/- (5% Reading + 2 digits) Insulation resistance with 100 VDC test voltage: 0.01-19.99, 99.9 +/- (2% Reading + 2 digits) 99.9 - 199.9MΩ +/- (5% Reading + 2 digits) Insulation resistance with 250 VDC test voltage: 0.01-19.99, 199.9, 249 +/- (2% Reading + 2 digits) 249 - 499MΩ +/- (5% Reading + 2 digits) Insulation resistance with 500 VDC test voltage: 0.01-19.99, 199.9, 499 +/- (2% Reading + 2 digits) 499 - 999 MΩ +/- (5% Reading + 2 digits) Insulation resistance with 1000 VDC test voltage: 0.01-19.99, 199.9, 999 +/- (2% Reading + 2 digits) 999 - 1999 MΩ +/- (5% Reading + 2 digits) Low resistance (without timer): 0.01-19.99, 99.9Ω+/- (2% Reading + 2 digits) 0.01-9.9Ω+/- (2% Reading + 2 digits) 0-19.99, 199.9, 1999 Ω +/- (5% Reading + 3 digits) 0.6- 125.6 Ωm 0.125-1.256, 19.99, 199.9 kΩm +/- (5% Reading + 3 digits) (please look at our rules and privacy policy) |
