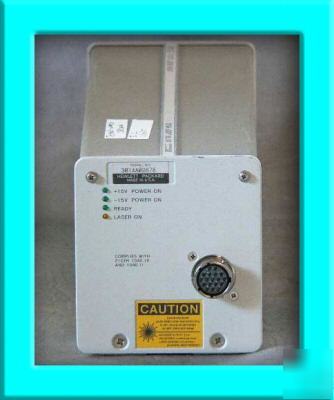

HP Agilent 5517B Laser Head Velocity: 500 mm/sec According to our research, the Agilent 5517B is used primarily in VME, PC based, and 5527A systems. The following features are unique to this laser head: * Reference frequency: 1.9 to 2.4 MHz * Minimum beam output power: 120 uW. * Input power requirements: +15V ± 0.3V at 2.2A maximum; -15V ± 0.3V at 0.02A maximum * Heat dissipation: Operating: 23W, Warm-up: 35W * Clearance required for cabling: 12.00 cm (4.72 in) beyond back of unit For more information see this Agilent Link. Note the list price of $ 7,947! Local Bay Area pickup available! We are located in Boulder Creek, California about 40 minutes from San Jose. Let's do the time-warp again ! (please look at our rules and privacy policy) |
