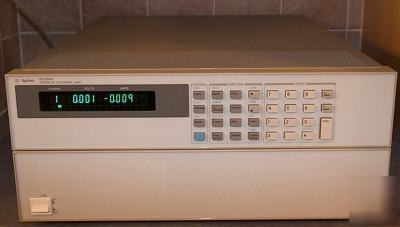

HOME : Agilent N3300A 1800Watt DC Load Mainframe The Agilent N3300A electronic load mainframe accepts user-installable Agilent load modules for easy system configuration and future reconfiguration. The N3300A holds up to six N3302A, N3303A, and N3304A load modules, or three N3305A and N3306A load modules, allowing up to 1,800 watts of total maximum power. One GPIB address is all you need for complete control and readback of all load modules within a single mainframe. The N3300A Series of dc electronic loads provides the fast operation and accurate programming and readback needed for high-volume dc power supply test systems. The Agilent N3300A mainframe has six slots. The 150 watt, 250 watt, and 300 watt modules require one slot each. The 500 watt and 600 watt modules require two slots each. Any combination of modules can be used, up to using the full six slots. The half-rack width mainframe, the Agilent N3301A, has two slots. * GPIB and RS-232 control of current, voltage and resistance * GPIB and RS-232 readback of current, voltage, and power * Built-in pulse waveform generation with programmable amplitude, frequency, duty cycle and slew rate * Full protection from over-current, over-voltage, over-power, over-temperature, and reverse polarity * Trigger for external synchronization * Parallel units in constant current mode for higher power Agilent N3302A Electronic Load: * Maximum Power @ 40°C: 150 W * Typical Minimum Operating Voltage @ Full Scale Current: 1.2 V * Low Range/High Range: 3 A/30 A * Low Range Accuracy: 0.1% + 5 mA * High Range Accuracy: 0.1% + 10 mA * Low Range/High Range: 6 V/60 V * Low Range Accuracy: 0.1% + 3 mV * High Range Accuracy: 0.1% + 8 mV * Range 1 (I >10% of current rating): 0.067-4 * Range 2 (I >1% of current rating): 3.6-40 * Range 3 (I >0.1% of current rating): 36-400 * Range 4 (I >0.01% of current rating): 360-2000 Agilent N3304A Electronic Load: * Maximum Power @ 40°C: 300 W * Typical Minimum Operating Voltage @ Full Scale Current: 1.2 V * Low Range/High Range: 6 A/60 A * Low Range Accuracy: 0.1% + 7.5 mA * High Range Accuracy: 0.1% + 15 mA * Low Range/High Range: 6 V/60V * Low Range Accuracy: 0.1% + 3 mV * High Range Accuracy: 0.1% + 8 mV * Range 1 (I >10% of current rating): 0.033-2 * Range 2 (I >1% of current rating): 1.8-20 * Range 3 (I >0.1% of current rating): 18-200 * Range 4 (I >0.01% of current rating): 180-2000 Agilent N3305A Electronic Load: * Maximum Power @ 40°C: 500 W * Typical Minimum Operating Voltage @ Full Scale Current: 1.4 V * Low Range/High Range: 6 A/60 A * Low Range Accuracy: 0.1% + 7.5 mA * High Range Accuracy: 0.1% + 15 mA * Low Range/High Range: 15 V/150 V * Low Range Accuracy: 0.1% + 10 mV * High Range Accuracy: 0.1% + 20 mV * Range 1 (I >10% of current rating): 0.033-5 * Range 2 (I >1% of current rating): 4.5-50 * Range 3 (I >0.1% of current rating): 45-500 * Range 4 (I >0.01% of current rating): 450-2500 (please look at our rules and privacy policy) |
