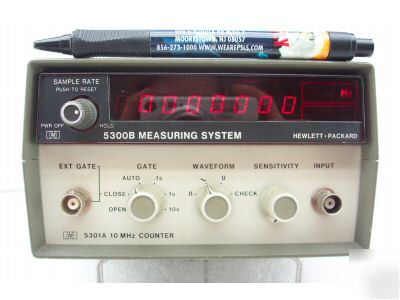

HP 5300B Measuring System w/ HP 5301A Counter Module The 5300B Measurement System Mainframe provides the system power, reference frequency, display, counting logic and timing control required for plug-ins (sold separately), 10 MHz output, approximately 1 Vrms at rear panel BNC, 100-ohms source impedance. The 5301A Frequency Counter Module is for use with the 5300A Mainframe. Frequency Range: 10Hz to 10MHz Sensitivity: 25 mV rms (50Hz to 1MHz), 50 mV rms (10Hz to 10MHz); 150 mV p-p pulse at minimum pulse width (50 ns) Gate times: Manually selected 0.1, 1, or 10 seconds; Auto Position selects gate time to 1 second for max. resolution Accuracy: ±(1 count + time base accuracy) IF THE PICTURES DOES NOT APPEAR IN ITS GIVEN SPACE, RIGHT CLICK ON THE SPACE AND SELECT SHOW PICTURE. CHECK OUT OUR STORES FOR MORE QUALITY MERCHANDISE AT A FRACTION OF RETAIL PRICE MrPowertech's Test Equipment Store VISIT OUR HEWLETT PACKARD STORE MrPowertech's Hewlett Packard Store VISIT OUR TEST AND MEASUREMENT STORE MrPowertech's Test & Measurement Store (please look at our rules and privacy policy) |
