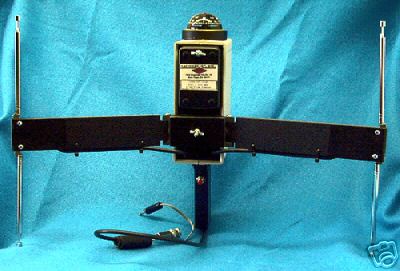

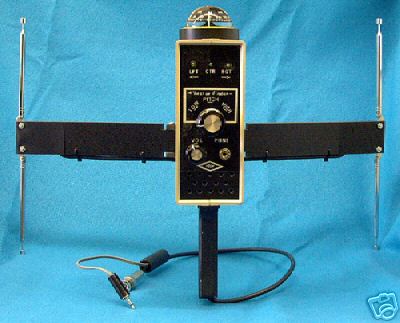

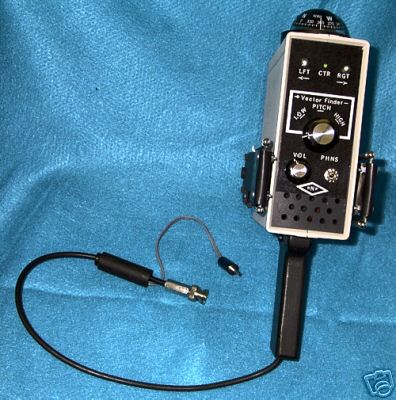

The Vector-Finder Series of VHF direction finding antennas provide a compact, lightweight, active antenna, suitable for use in the field with handheld transceivers and scanning radios. The mechanical design allows the sense antennas to be folded back to provide a compact unit, easily stowed or transported in any vehicle. The system interfaces with any FM receiver or transceiver via the antenna jack and the earphone jack. Several different models are available to suit your pocketbook or unique field application, all of which operate on the phase shift technique. The VF-142Q models incorporate left-right indicators as well as an audible response from which the user can determine the true direction of the radio signal. Enclosure Overall Height, including pistol-grip and compass: 11 3/4 inches * Front to Back Depth: 7 1/2 inches * Width with Antennas Flush against the enclosure: 3 1/2 inches * Antenna Vertical Length (fully extended): 38 inches * Dimensions Between Sense Antennas (arms opened): 18 inches * Direction Indication Method, All Models: Front Panel mounted LED diodes indicating Left, Right, and Center directions of incoming radio waves. Audible adjustable tone available via speaker mounted inside antenna enclosure or from front panel earphone jack. * Compass and Resolution Type: Ritchie Navigation oil filled floating indicator magnetic compass with luber's line. * Incremental Compass Calibration: Every 5 degrees * LOS Compass Resolution: Approx. 2 degrees * Electronic resolution of LOS: Better than 2 degrees * Antenna and Interface Specifications, All Models 2 Collapsible Dipole Antennas configured in a phase sensing array with vertical polarization * 50 Ohm coaxial feedline with BNC connector and 1/8 inch mono plug for interface to radio earphone output. * Power Requirements: Single 9-volt Alkaline battery, approx. 30 ma current draw when activated. * Activation by push button switch mounted on pistol grip handle. Type VF-142Q: FREQ. RANGE; 144-230 MHz. Audible and LED left-right direction indication ********************************* Click here to add me to your Favorite Sellers (please look at our rules and privacy policy) |
