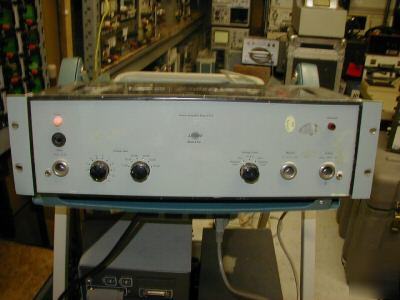

THIS BRUEL & KJAER 2713 POWER AMPLIFER IS ESPECIALLY SUITED FOR DRIVING REACTIVE LOADS SUCH AS HYDROPHONES USED AS UNDERWATER SOUND TRANSMITTERS,MAY ALSO BE USED AS A GENERAL PURPOSE POWER AMPLIFIER WHERE A HIGH VOLTAGE GAIN OF UP TO 60DB IS REQUIRED.HAS SELECTABLE DRIVE VOLTAGE LIMITS OF 31,6 AND 100V,MAXIMUM OUTPUT POWER=100 VA,MAXIMUM OUTPUT VOLTAGE=100V,AND MAXIMUM OUTPUT CURRENT=1 A,FREQUENCY RANGE FULL POWER =10HZ TO 200 KHZ,VOLTAGE GAIN =0-60DB,INPUT IMPEDANCE=1MOHM,NOMINAL OUTPUT LOAD FOR FULL POWER=100 OHM REACTIVE,PROTECTION=SELECTABLE VOLTAGE AND CURRENT DRIVE LIMITS,OUTPUT SECTION TEMPERATURE,AC MAINS REQUIREMENT=SINGLE PHASE 200VA,THIS UNIT POWERS ON AND THE OVERVOLTAGE PROTECTION LIGHT COMES ON FOR A SECOND THEN GOES OFF,IT HAS SOME WEAR,I BELIEVE IT IS AN OLDER MODEL,I WILL OFFER A 5 DAY RIGHT OF INSPECTION,5 DAY ROR
