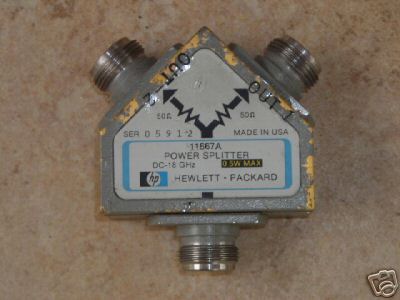

This is an HP / Agilent 11667A Power Splitter with "N" female connectors. This Power Splitter is from a working Lab. It is used but it has been tested and it works. The HP / Agilent 11667 A/B/C Power Splitters are recommended when making wide band ratio measurements using the HP / Agilent 8757, 8756 or 8755 scalar network analyzer. These 2-resistor type splitters provide excellent output SWR at the auxiliary arm when used for source leveling or ratio measurement applications. The tracking between output arms over a frequency range from dc to 50 GHz allows wideband measurements to be made with a minimum of uncertainty. Equivalent Output SWR: (leveling or ratio measurements Output Tracking (db) : (between output arms) Typical Phase Tracking (deg): (between output arms) Dimensions 46mm H x 52mm W x 19mm D (1.8in x 2.0in x 0.7in) (please look at our rules and privacy policy) |
