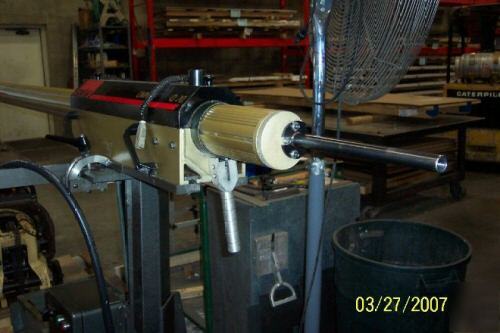

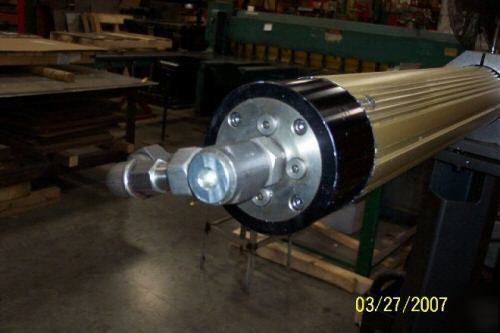

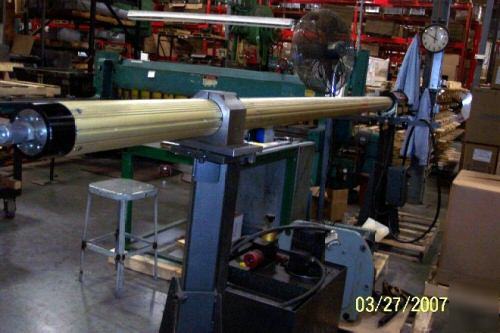

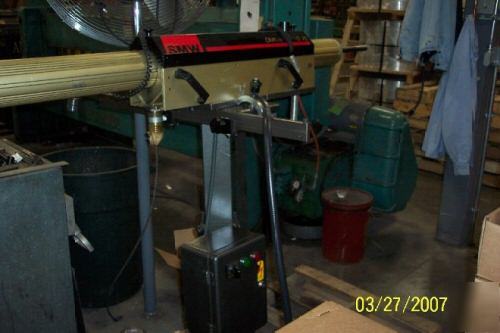

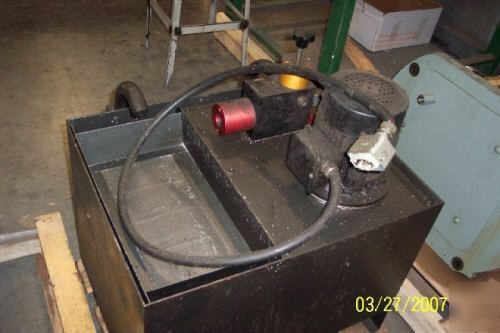

HERE WE HAVE A SMW FSQ 20 12' BAR FEED IN GREAT WORKING ORDER. THIS BAR FEED WAS USED ON A BROWN & SHARP ULTRAMATIC SCREW MACHINE. THE SCREW MACHINE WAS RETROFITTED TO CNC AND A DIFFERENT STYLE BAR FEED WAS REQUIRED. ROUND ROD (CAP)...........................3/4" HEXAGONAL RODS (CAP).............5/8" SQUARE RODS (CAP)......................1/2" ROTATION SPEED (DEPENDING ON PROFILES).........UP TO 600 M-MIN OIL SUPPLY.............OIL IS FED THRU LATERAL INJECTION ELECTRICAL EQUIPMENT................220/440 60 HZ HYDRAULIC GROUP IS AUTONOMOUS HYDRAULIC UNIT WITH INTERMEDIATE DECANTATION TANK AND HIGH FILTRATION CAPACITY; OIL CONTENTS 80 l; PUMP 26 l/MIN.; MOTOR 0.55 KW; FEEDING PRESSURE 0,8 DIVIDED 5 BAR. WEIGHT.............................APPROX. 650 LBS (please look at our rules and privacy policy) |
