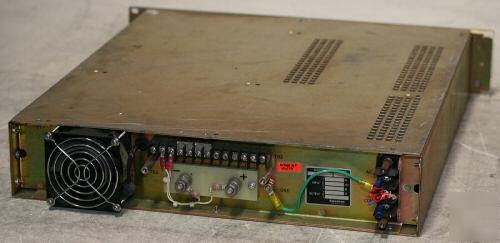

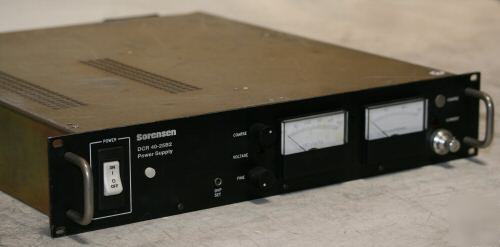

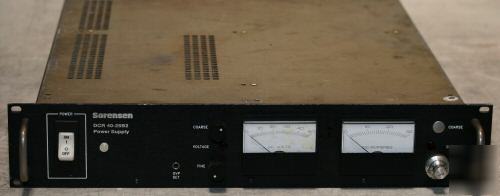

Sorensen DC Power Supply DCR40-25B2 DC POWER SUPPLY 0-40V 0-25A In House Testing: This supply was fully tested utilizing a state of the art 5.2 KW electronic load. This supply was tested in the constant voltage, constant current, and constant resistance modes. It was tested both in static and dynamic load conditions. Brief Description: This Sorensen DCR Model is a 500 Watt DC power supply designed to provide highly regulated, precise DC output, adjustable over a wide range for a broad scope of applications. Operating Modes: This supply operates in two basic modes: In Constant Voltage mode the output voltage is regulated at the selected value while the output current varies with load requirements. In Constant Current mode the output current is regulated at the selected value while the output voltage varies with load requirements. The supply features an automatic crossover system which enables the unit to switch operating modes in response to varying load requirements. * Simultaneous digital display of both voltage and current * FINE and COARSE VOLTAGE adjust potentiometers * FINE and COARSE CURRENT adjust potentiometers * Automatic mode crossover into current or voltage mode * Flexible output configuration: multiple units can be connected in parallel or series to provide increased voltage or current * Adjustable Over-Voltage Protection (OVP) * Remote voltage, current limit, and OVP programming with selectable programming constants Please check our link for other power supplies that are available and instruction manuals. (please look at our rules and privacy policy) |
