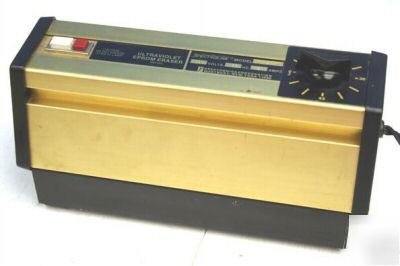

Spectronics Corporation Spectroline PL-265T UV EPROM Eraser (051206602150) This does not mean that the unit doesn’t work, only that we have not tested or checked it out. This may also mean that we are not knowledgeable in that specific item. Please call Brent Toll Free at 1-866-MHZ-ELEC (1-(***)-649-3532) if you have questions between the hours of 9:00 AM and 4:00 PM Monday thru Friday Pacific Time. The Item may vary from picture as manufacture may change model appearance. All information, including description, specifications and features are from a manufacturers data sheet or manual and are subject to change without notice. Meaning that all information included in the description, specifications and features What you see is what you get! If it doesn’t show it you probably won’t get it! I would like to take the time to thank From the bottom of my heart, thank you very much. You will never truly know how much it means to me. Spectronics Corporation Spectroline PL-265T UV EPROM Eraser * Electrical Requirements: 120 Volts AC, 60 Hz, .5 Amps, 254nm Features and Benefits (may include): * Capacitance of 25 to 42 EPROMs * Accept PC Boards up to 4†x 9†* Complete erasure in 6 to 11 minutes * The PL- and PR- Series UV EPROM Erasing Lamps are ideal for data processing centers and other medium volume EPROM users. Three models are available, each designed to accommodate small PC boards. * The PR-Series lamps feature high intensity UV grid tubes that provide maximum irradiance uniformity, for extremely fast and efficient erasing. In as little as 6 minutes, these lamps can completely erase EPROMs on PC boards up to 4†x 9†(10.2 x 22.9cm). The 320T also accommodates as many as 42 individual EPROMs, while the PR-125T holds up to 25 EPROMs. * The compact and economical PL-265T lamp erases PC boards up to 4†x 9â€, or up to 30 EPROM chips. Its two 6-watt tubes erase programmed memories in as little as 11 minutes. (***Lamps will need to be replaced.***) * All three lamps are attractively styled with anodized aluminum housings for rugged durability. A specular aluminum reflector assures maximum short wave UV (254nm) intensity. And the loading drawer contains a removable tray insert which is adjustable to varying heights to ensure optimum exposure. * PL- and PR-Series EPROM erasers also feature several safeguards to protect both user and the devices. UV absorbing light indicators signal when the tubes are lit, and a safety interlock prevents operation unless the drawer is fully closed. Thus, the user cannot be accidentally exposed to harmful UV. A 60-minute timer automatically shuts off the unit at the end of each erasing cycle, prolonging the life of both the tubes and EPROMs. A conductive foam pad protects chips from electrostatic build-up. All models are UL listed for extra safety. * Erasing Area: 3 ½†x 8†(8.9cm x 20.3cm) * Typical Peak Intensity: 9,600 µW/cm² * Erasing Time Required for One Chip 10.4 mins. * Erasing Time Required at Full Capacity: 13.6 mins. * Inside Tray Dimensions: 4 1/8†W x 9 7/8†L x 1 3/8†H (10.5cm W x 25.1cm L x 3.5cm H) * Overall Housing Dimensions: 4 5/8†W x 11 1/8†L x 5 3/8†H (11.7cm W x 28.3cm L x 13.7cm H) * Net Weight: 6 1/4 lbs. (2.8kg) (please look at our rules and privacy policy) |
