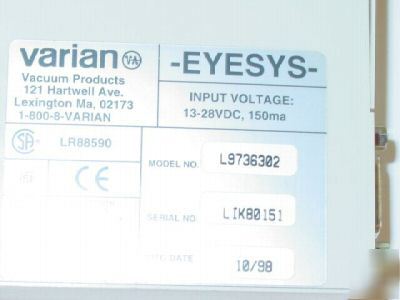

This listing is for a Varian convector guage. * Input Voltage: 13-28VDC / 150mA ________________________________________________________________________________ Eyesys ConvecTorr™ Active Rough-Vacuum Gauge Varian’s Eyesys ConvecTorr Active Vacuum Gauge is a compact pressure-measurement solution that is economcal and reliable. It has a fast response to changing pressures between 1 mtorr and atmospheric pressure, which is made possible by maintaining the temperature of the filament at a constant level. All of this comes in a single package, with the transducer and the controller circuitry built in, eliminating the need for a more-expensive rack-mounted controller. The Eyesys ConvecTorr Gauge offers two SPST set points for process control. The trigger levels are selected by a digital switch (which prevents drifting) to any of sixteen settings between 5 mtorr and 500 torr. Another advantage of the Eyesys ConvecTorr Gauge is automatic calibration. This is initiated when the pressure is either at atmosphere or at <1 mtorr either by pressing a button on the case or by means of a low-voltage pulse from a computer or PLC. The Eyesys ConvecTorr Gauge has these options: * Pressure units in torr, mbar, or pascal * Digital numeric display or no display * Analog 1-volt-per-decade log-linear output or serial digital communications (RS232 or RS485) * NW16 or NW25 KF vacuum flange * Factory calibration to NIST-traceable standard Two SPST relays, 100 mA @ 40 VDC 16 choices from 5 mtorr to 500 torr, via digital switch Electrical, safety certifications UL, cUL recognized, CE certified More information may be available through http:// /cgi-bin/nav?products/vacuum/measure/gauges/eyesysct/specs&cid=IPLNNQKMFL ________________________________________________________________________________ This is brand new, never used. Check out the picture for more information. Feel free to email or call me. My toll free # is (***) 972-1346. (please look at our rules and privacy policy) |
