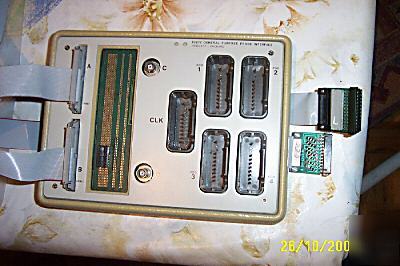

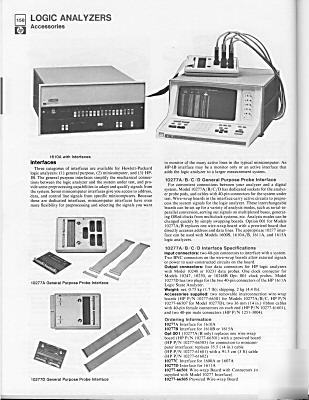

HP 10277 General Purpose Probe Interface for use with HP 1600S 1610A 1610B 1611A 1615A Logic Analyzer. I included a scan of HP 1983 Catalog for more informations about it Sorry! I do not master my Scan-to-HTML process yet but the important information is there. Thank You for Looking ! Three categories of interfaces are available for this Hewlett-Packard logic analyzers: (1) general purpose, (2) minicomputer, and (3) HP-1B. The general purpose interfaces simplify the mechanical connections between the logic analyzer and the system under test, and provide some preprocessing capabilities to adapt and qualify signals from the system. Seven minicomputer interfaces give you access to address, data, and control line signals from specific minicomputers. Because these are dedicated interfaces, minicomputer interfaces have even more flexibility for preprocessing and selecting the signals you want to monitor of the many active lines in the typical minicomputer. An HP-1B interface may be a monitor only or an active interface that adds the logic analyzer to a larger measurement system. 10277A/B/C/D General Purpose Probe Interface For convenient connections between your analyzer and a digital system, Model 10277A/B/C/D has dedicated sockets for the analyzer probe pods, and cables with 40-pin connectors for the system under test. Wire-wrap boards in the interface carry active circuits to preprocess the system signals for the logic analyzer. These interchangeable boards can be set up for a variety of analysis modes, such as serial-to-parallel conversion, sorting out signals on multiplexed buses, generating ORed clocks from multiclock systems, etc. Analysis modes can be changed quickly by simply swapping boards. Option 001 for Models 10277A/B replaces one wire-wrap board with a prewired board that directly accesses address and data lines. The appropriate 10277 interface can be used with Models 1600S, 1610A/B, 1611A, and 1615A logic analyzers. 10277A/B/C/D Interface Specifications Input connectors: two 40-pin connectors to interface with a system. Two BNC connectors on the wire-wrap boards allow external signals or power to user-constructed circuits on the board. Output connectors: four data connectors for HP logic analyzers with Model 10248 or 10231 data probes. One clock connector for Models 10247, 10230, or 10248B Opt. 001 clock probes. Model 10277D has two plugs for the two 40-pin connectors of the HP 161 IA Logic State Analyzer. Accessories supplied: two removable interconnection wire-wrap boards (HP P/N 10277-66501 for Models 10277A/B/C, HP P/N 10277-66507 for Model 10277D), two 36 mm (14 in.) ribbon cables with 40-pin female connectors on each end (HP P/N 10277-61601), and two 40-pin male connectors (HP P/N 1251-3004). 10277B Interface for 1610B or 1615A Opt 001 (10277A/B only) replaces one wire-wrap board (HP P/N 10277-66501) with a prewired board (HP P/N 10277-66505) for connection to minicomputer interfaces; replaces 35.5 (14 in.) cable (HP P/N 10277-61601) with a 91.5 cm (3 ft) cable (HP P/N 10277-61602) 10277C Interface for 1600A or 1607A 10277D Interface for 1611A 10277-66501 Wire-wrap Board with Connectors (two supplied with Model 10277 Interface) 10277-66505 Prewired Wire-wrap Board (please look at our rules and privacy policy) |
