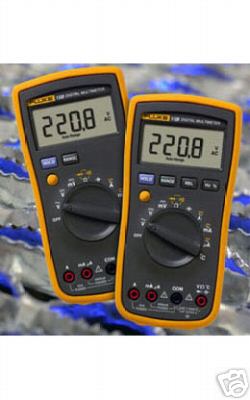

item photo item photo item photo Maximum Voltage between any Terminal and Earth Ground: W Fuse Protection for mA µA inputs: 500 mA, 1000 V FAST, Min. Interrupt Rating 20,000 A W Fuse Protection for A input: 10 A, 1000 V FAST, Min. Interrupt Rating 20,000 A Digital: 4000 count updates 3/sec Operating: 0 °C to 40 °C, Storage: -30 °C to 60 °C indefinitely (to -40 °C for 100 hours) 0.1 X (specified accuracy)/ °C (<18 °C or >28 °C) Electromagnetic Compatibility: Complies with FCC Part 15, Class B, IEC 61326, 3 V/m, performance criterion B 4 kV (1.2 x 50 µs) Peak for measurement Categories I, II, and III. Noncondensing < 10 °C 90% from 10 °C to 30 °C; 75% from 30 °C to 40 °C Relative Humidity, 40 MΩ Range: 80% from 10 °C to 30 °C; 70% from 30 °C to 40 °C 180 mm x 89 mm x 51.5 mm (with holster) IEC 61010-1, 2000 CAT I 1000 V, CAT II 600 V, and CAT III 300 V overvoltage standards Overvoltage installation categories per IEC 61010-1, 2000: The Meter is designed to protect against transients in these catagories: CAT I: From high-voltage low-energy sources, e.g., electronic circuits or a copy machine. CAT II: From equipment supplied from the fixed installation, e.g., Televisions, PCs, portable tools and household appliances. CAT III: From equipment in fixed equipment installations, e.g., installation panels, feeders and short branch circuits, and lighting systems in large buildings. Digital Multimeter Accuracy Specifications Accuracy Specifications Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 %. Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits]) 4.000 V 40.00 V 400.0 V 1000 V 4.000 V 40.00 V 400.0 V 1000 V Temperature 3 °C (K-type thermocouple) 50 °C to 400 °C 0 °C to 50 °C -55 °C to 0 °C 2 % + 1 °C ± 2 °C 9 % + 2 °C 400.0 Ω4.000 kΩ40.00 kΩ400.0 kΩ4.000 MΩ40.00 MΩ 0.1 Ω0.001 kΩ0.01 kΩ0.1 kΩ0.001 MΩ0.01 MΩ 0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3 0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3 50.00 nF 500.0 nF 5.000 µF 50.00 µF 100.0 µF 0.01 nF 0.1 nF 0.001 µF 0.01 µF 0.1 µF 2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 Frequency Hz (10 Hz – 100 kHz) 50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz 0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz 1. Manual Range only 2. Diode test open circuit test voltage is 1.1 V to 1.6 V and short circuit current is < 0.6 mA (typical). 3. Temperature specifications do not include thermocouple errors. After inserting the thermocouple plug into the meter, allow several minutes for thermal stabilization. 4. Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range). For the 17B, errors can be reduced by using the relative feature. 5. For values between 10% and 90% duty cycle at 50 Hz. 6. When in the 4A range, display will show 4000 counts, please ignore the last digit. To take a look at the detail English Manual: http://assets.fluke.com.cn/evtmanuals/15b17b__cmeng0000.pdf This web is © Copyright ATI 2005-2006, All Rights Reserved. (please look at our rules and privacy policy) |
