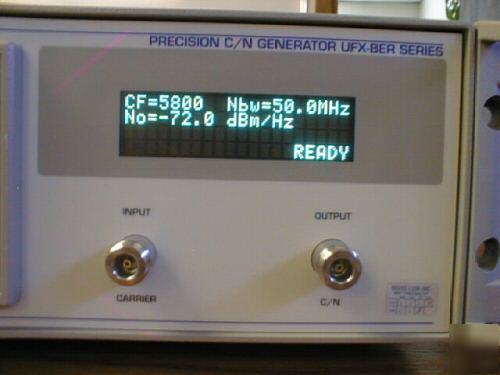

The UFX-BER 2442/5880 can be used to test bit error rate performance and receiver sensitivity in the popular 2.4 GHz and 5.8GHz ISM bands. Systems operating in these bands include WiMax, WiFi, HomeRF, Bluetooth, HiperLAN, cordless phones and others. The UFX-BER adds a precise quantity of noise to a signal generated externally or can function as a very accurate stand alone noise source or power meter. Output carrier power, noise power, carrier to noise ratio, Eb/No and carrier to interferor ratios can be set via the front panel control or via the GPIB interface. The unit appears to calibrate and operate properly. The spectrum analyzer photos show the instrument generating a carrier to noise ratio at 2.4 GHz, and noise output signal at 5.8 GHz. * Operating Frequency Bands: 2400 to 2484 MHz, 5785 to 5815 MHz * Input Power Range: -55dBm to +5 dBm * Noise BW accuracy: +/-0.1 dBm * Attenuation range: 60dB in 0.25dB steps * Ratio Accuracy: +/- .21 dB RSS for carrier attn less than 40dB * Power Meter Range: -55dBm to +5dBm * Power Meter Accuracy: +/- 0.5dBm We cannot provide any warranty for this instrument, but will offer a five day right of return. (please look at our rules and privacy policy) |
