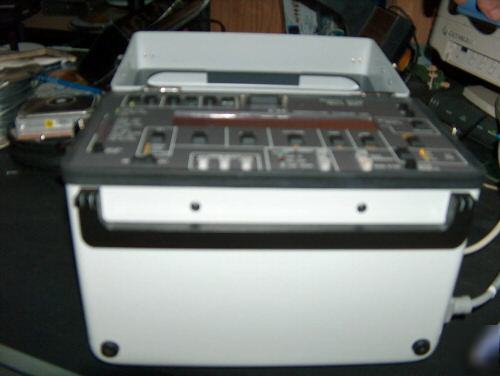

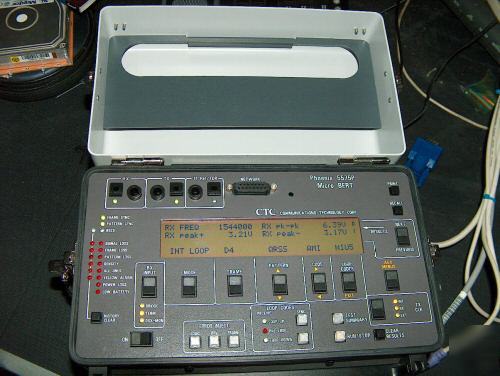

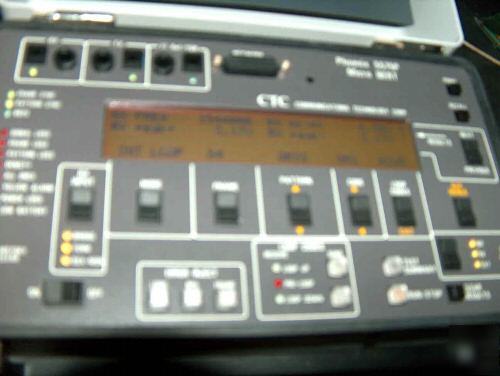

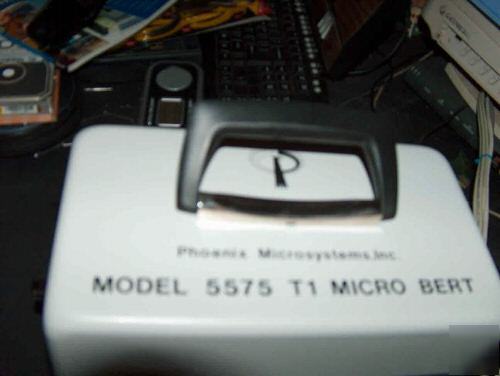

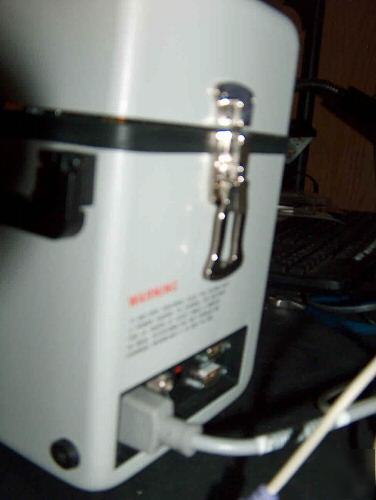

Description: The Phoenix Model 5575 T1 Micro Bert is a full function T-carrier line tester designed for use on 1.544 Mbps T-carrier links. The 5575 is packaged in a rugged aluminum, 10x5.5x6 inch, housing with a convenient carrying handle. The removable top cover serves as the storage area for the interface cables. A two line by forty column LCD display, 14 status/alarm LED indicators, and a 24-key keyboard with internal status LEDs on each key, provide the operator with a full function, easy to use tester, in a small, portable package. Design Highlights: # One button full testing with automatic line evaluation and setup # Portable, handheld, battery powered # Tests D4 framed, extended superframe, SLC(r)96 framing, or unframed links # Direct connection to TelCo "T" interface # Generates and receives 12 test patterns plus user defined pattern # Complete self-test functions # Operates from internal battery, line power using adapter, or local central office battery # Real time clock (time, day, date) # Full remote control RS-232 port # Twenty column printer port via a second RS-232 port (please look at our rules and privacy policy) |
