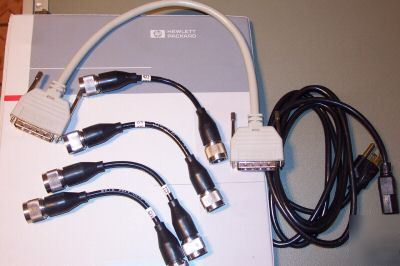

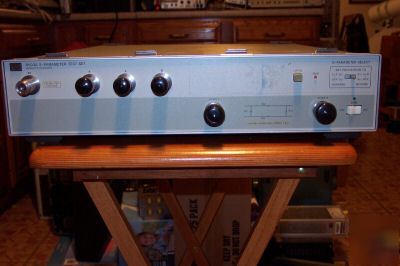

HP/Agilent 8503A S-Parameter Test Set w/ Cables and Manual Frequency Range 500kHz to 1.3 GHz The 8503A can be used with any network analyzer that has external Source, A,B & R ports. SPECS:,Directivity: >40dB, Frequency response: Transmission (S1, S2): ±1 dB, ±12° from 0.5-1300MHz; Reflection (S1, S2): ±2 dB, ±20° from *0.5-1300MHz): ±15° from 2-1300 MHz. Maximum operating level of ±20 dBm. Connectors: Test ports, 50 ohm APC-7, all other RF connectors, 50 ohm Type N(F) Bias inputs, BNC female. DC bias input: ±30 VDC, ±200 mA. Works with 120 & 240 voltage. Includes the HP/Agilent 8503A S- Parameter test set, 4 = HP 8120-4782 (275, 422, 431, 449) cables, and power cord. Manual and Signal Processor interconnect cable. It is in excellent condition and is guaranteed to function (please look at our rules and privacy policy) |
