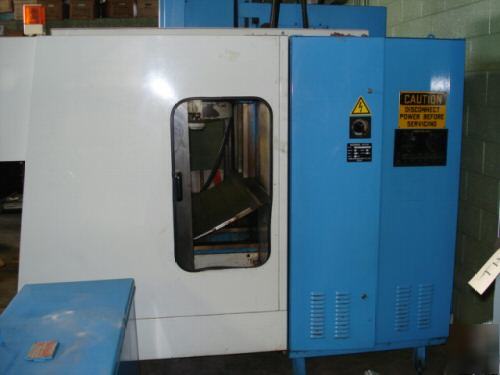

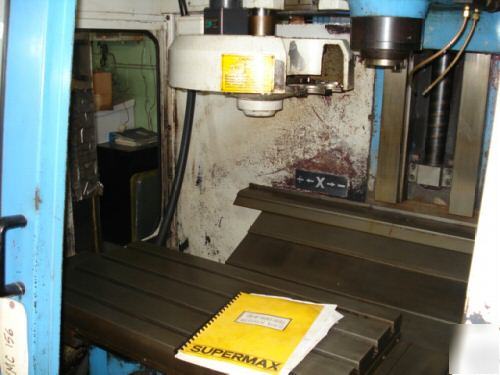

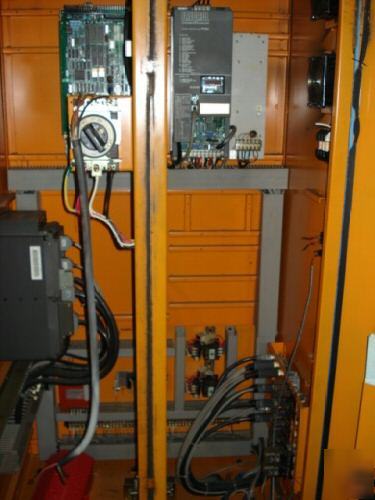

SUPERMAX MAX-1 REBEL VMC-60A CNC VERTICAL MACHINING CENTER Motor Driven With 10/7.5 HP, 3 Phase, 60 Cycle, AC Spindle Drive. DC Axis Drives. MD Coolant. MD Hydraulics. MD Lubrication System. Mitsubishi-Meldas M3A CNC Controls. 16-Position Automatic Tool Changer. Box Ways. Rigid Tapping. RS-232 Port. Complete Coolant/Chip Enclosures. Coolant Pump And Tank. Operators Hand Held Remote Pendant Control. Table Dimensions: 33.1" x 16.5" Distance from Spindle Nose to Top of Table Maximum: 22.05" Distance from Spindle Nose to Top of Table Minimum: 3.94" Distance from Spindle to Column: 14.76" Tool Size/Weight Capacity: 3" x 11.8" / 13.2 lbs. Cutting Feed Rates X, Y, Z: 1-196 IPM Rapid Feed Rates X & Y: 630 IPM Approximate Dimensions: 83" x 86" x 95" The Supermax is currently not running. There is a problem with the memory. Otherwise the machine appears to be in very good condition. The top of table, table and head ways all appear to be very good. The control cabinet is in good order as does the tool changer. We will load this machine onto a flatbed truck at no additional charges. NO Vans. NO containers (please look at our rules and privacy policy) |
m.henderson@machine--tools.com (Melvin Henderson) for additional information. This email is used for forwarding to newsgroup user.
