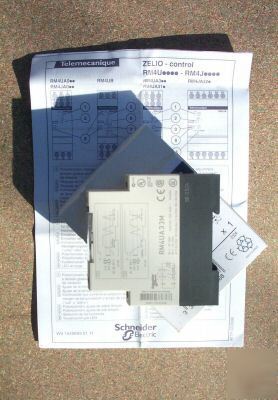

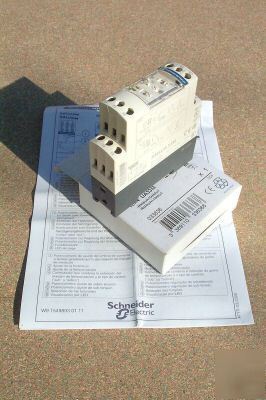

Over/Under Voltage Control Relay. Comprehensive Tech. details and specifications available in pdf via: http:// /85256E54006445C3/all/62D6E24C4663973F85256E5F003125D5/$File/1549893_01a55.pdf * Two measurement threshold ranges :30...300V and 50...500V * Two changeover relay output. * Front panel setting and adjustment with tamperproof cover facility. * LED power-on and relay state indication. * Integrated timer function prevents response to momentary under/over volt conditions. 0-30secs delay. * Hysterisis setting allows adjustment of voltage level at which unit resets to normal state. 0-30% of threshold voltage. Device requires a 220-240Vac 50/60Hz supply. Unit is almost identical to RS product code 422-5556 which retails at £70.60[+the vat for us mortals!] In the following description I have tried give some idea of the potential applications for the device and it's ease of installation. However the following is not intended as a precise technical guide and may contain some minor errors. It should definitely not be used as a guide to installation. All necessary information is carried on the side of the unit itself and in a comprehensive instruction leaflet. This is a multi-application device designed for applications where a signal or switching are required in response to variations in single phase line voltage. Especially suited to automatic power changeover systems eg. Switching power automatically over to or from battery back-up/generator. Also can be used in assembling an NVR [No-voltage release] safety system for tools and motors. Voltage measurement range can be adjusted from 30...300V by selecting terminal B2 or from 50...500V by selecting terminal B3. The device is configured such that both relays energise after a specific time delay [t] when the voltage [across terminals Bx & C] rises above or falls below a specified threshold. Hysteresis is incorporated and can be adjusted from below 5% to above 30%. This means that the relay holds until the voltage level falls back to within an adjustable percentage of the original threshold value. The timer and the hysteresis both allow controlled stable and functional response to over/undervoltage events. All specific technical details are described on the side of the relay in the form of a graphical representation of the effect of the timer functions, hysteresis for both under-voltage and over-voltage measurement. Also supply voltage ranges are listed and a basic wiring schematic is given. Standard Din rail mounting. 22mm module. Height [rail to face] 80mm [rail to shoulder] approx 55mm. Lenght 78mm New unused surplus stock. Boxed with instructions. Electrical installation and servicing work should always be carried out by a competent and qualified electrician. The information given above is presented as a description of the item and it's suggested use. It is not in any regard a guide to installing this item. Please refer to the given manufacturers pdf file when making decisions relative to the your intended application. "WARNING" - Misuse or misapplication of products may cause explosion, electric shock, fire, personal injury, property damage or trauma to hamsters or other small mammals. All of the products we offer are for users having technical expertise. It is important that you analyze all aspects of your application and review the technical information concerning the product or system. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety and warning requirements of the application are met. etc,etc. Yadda, yadda yadda. For any other information or advice do not hesitate to contact me. rapid delivery, fastest ever.. good communication.. Many thanks to you :-) A really great seller. Helpful and fast to supply really top class items Great stuff, the goods arrived quickly and in perfect condition. Recommended. exactly what I wanted ,super service and accurate description ,would recommend Thanks for your interest in this product, Chris. (please look at our rules and privacy policy) |
