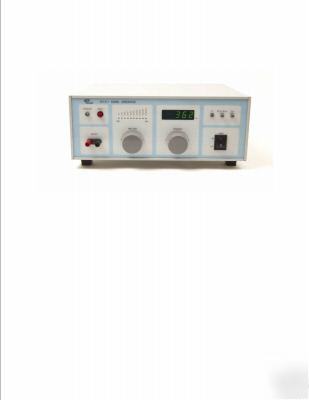

1. DESCRIPTION The PA5100 Signal Generator / Power Amplifier is specifically designed to power the ES020 Electromagnetic Shaker. The Signal Generator generates both high quality sine waves and true white noise, and accepts an external signal for amplification. Combining the signal generator and power amplifier into one unit saves room on the laboratory tabletop and provides additional ease of use. A current-limiting safety switch is included in the design to prevent damage to the shaker from over-driving. The KCF Signal Generator / Power Amplifier is also used to drive a wide range of laboratory sound and vibration test equipment. Common applications include testing loudspeakers, microphones, hearing aids, and hydrophones, anechoic chamber and reverberation room experiments, acoustic filter experiments, acoustic phase matching, and the measurement of structural impedance, phase, and vibration response. Sine Function Frequency Range 20 Hz to 20 kHz Digital LED Frequency Display 20 Hz to 20 kHz, refreshed at 10/second Display Resolution +/- 1 digit Sinewave Amplified Output Range 0.15 mVrms to 15 Vrms Sinewave Amplitude Variation +/- 0.035 dB Sinewave Output (not amplified) 778 mVrms +/- 0.003 V @ 1kHz White Noise Amplified Output Range 1 mVrms to 2 Vrms White Noise Output (not amplified) 70 mVrms Current Protection Limit 2.5 A Power Input 110V +/- 10V, 60 Hz. Ambient Operating Temperatures 0 deg C to 40 deg C **For more information about our products and our company in general, please go to our website at . (please look at our rules and privacy policy) |
