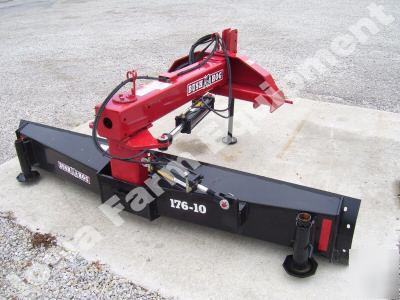

Brand New Bush Hog Model No. 176-10, 10' Wide, 3-Point Mounted Rear Blade with 3-Way Hydraulic Adjustments. BUSH HOG BLADES HAVE THE BEST SPEC'S & PROVIDE THE BEST OVERALL VALUE!!! Price is for a Complete Bush Hog 176-10' Rear Blade which Includes the Following: * All 3 Cylinders, Pins, Clips, Hoses & Hose Tips. Specifications are as Follows: * Blade is Rated for 2WD Tractors up to 175 PTO HP & 4WD Tractors up to 140 PTO HP. * Good for Category 2 or 3 Hitches & it's Quick Hitch Compatible. * Blade Weighs 1408lb's w/o the Cylinders, and 1590lb's with all 3 Cylinders! * 5" Diameter King Pin is the LARGEST! * Bush Hogs Moldboard Spec's are GREAT! * TALLEST Moldboard at 20" High! * Cutting Blade is made with Carbon Steel; * Reversible Blade with factory Bevel on Both Sides. * 3-Way Adjustments are as follows; * 0 to 45 degrees (Horizontal Rotation). * Swing Angle Cylinder is 4" dia x 16" Stroke & 2" Shaft. * Offset Cylinder is 4" dia x 16" Stroke & 2" Shaft. * Tilt Adjustment Cylinder is 4" dia x 4-1/2" Stroke & 1-1/2" Shaft. * Blade has an Extra Long Boom to Accommodate the full 360 degrees of Blade Rotation. * Mechanical Linkage for Tail Wheel. * Hydraulic Cylinder Kit for Tail Wheel. Plus, We are Glad to say, These Bush Hog Blades are MADE IN THE USA!!! (please look at our rules and privacy policy) |
