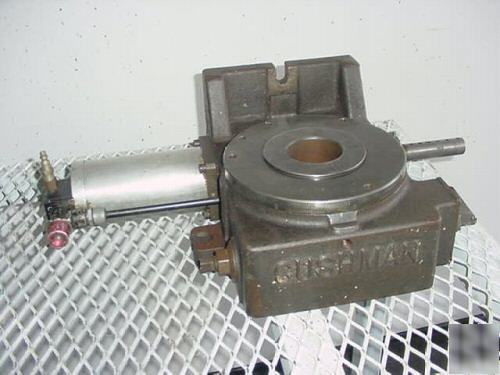

This is a Cushman Air Flash Super Spacer in good working condition. The index is controlled by placing the pin located collar into different positions along the shaft (see photos). * Cushman Air Flash Super Spacer * Model 10 850 08 500R / Serial # 855 * Air Operated with push button * Horizontal or Vertical Operation * 8-3/8" Diameter Table / with approximately 4.714" (120mm) Diameter hub for mounting Chucks or Tables * Revolutions and Degrees at each collar location: * #1 Position 48 Table Revolutions 7 Degrees per Rev * #2 Position 24 Table Revolutions 15 Degrees " * #3 Position 16 Table Revolutions 20 Degrees " * #4 Position 12 Table Revolutions 30 Degrees " * #5 Position 10 Table Revolutions 37 Degrees " * #6 Position 8 Table Revolutions 40 Degrees " * #7 Position 7 Table Revolutions 50 Degrees " * #8 Position 6 Table Revolutions 60 Degrees " The electrical pin plug has some material missing but would still accept the attaching screw plug. Any questions e-mail or call Brandon @ (***)-580-4794. Please include item number in all correspondence. See other items in our e-Bay store. Be sure to add me to your favorites list! (please look at our rules and privacy policy) |
