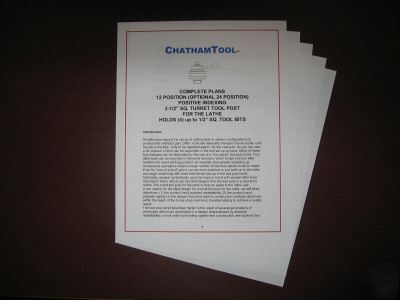

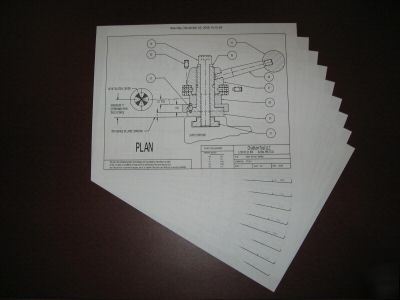

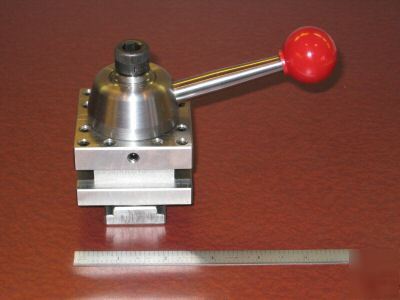

PLANS TO BUILD YOUR OWN 2-1/2" TOOLPOST TURRET IN PDF FORMAT "GET YOUR PLANS TODAY" VIA "free" ELECTRONIC DELIVERY “Prints And Instructions Are "Top Shelf"!!!! Very Professional!!!!! AAA+++†“Another nice design with clear prints and great instructions! Thanks Dick!! A+†PLANS ONLY-TURRET NOT INCLUDED COMPLETE PLANS and INSTRUCTION MANUAL for building an industrial quality TURRET TOOL POST for your lathe. This turret tool post plan is customizable to fit any lathe. The plan includes the following: (A) Complete instruction manual. (B) Clear, Crisp, Brand New CAD DESIGNED drawings. (9 sheets) This turret tool post plan is for the "FULL SIZE 2-1/2" SQUARE" turret tool post and is customizable to fit all lathes, including Logan, South Bend, Clausing, Sheldon, Emco, Smithy, Atlas, Grizzly, Jet and others. This plan is a quality, "AMERICAN DESIGNED" product and features the following: * 12 position positive indexing with detents (indexes every 30 degrees). * Plan also includes optional 24 position indexing with detents (indexes every 15 degrees) * 2-1/2" Square Turret Block holds (4) 3/8" tool bits. (Tool slot size is 1/2") * Customizable to fit any lathe. (.813" minimum vertical distance required from the centerline of headstock to the top of the compound or cross slide) * Smooth and positive operation. The turret block is positively raised up and off the detents while turning the handle and locks down solidly-there are no springs to fail. * Saves set up time on the lathe. * Design lends itself to construction methods that are within the reach of the home shop machinist possessing a lathe with milling attachment. * All components are fully detailed. * A fun lathe project that results in a useful tool that you can be proud of. * Clear, Cad Designed drawings (9 sheets) and a step by step Construction manual (5 pages). (please look at our rules and privacy policy) |
