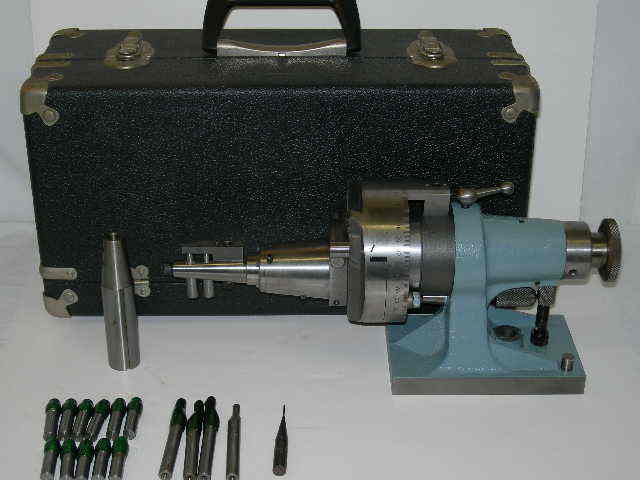

SPI Diamond Dressing Tools & Fitted Box Plus As with most of my unique inventor's inventory, this is truly a beautiful piece of machine equipment. He simply loved quality! Even though it was purchased from the Bruwiler Precise Sales Co., Inc. of California in June of 1973, this Spi Radius & Angle Dresser is in superb shape. He tended to be very fastidious in how he maintained everything (tools, cameras, microscopes...). While I have listed this as "used", my inventor only did prototype machine work - thus - if he used it at all - it has only seen "light" duty! In the case were the following items - which I have included with the dresser: (1) Rat-Tail Diamond; (13) SPI Diamond Tools (2 of which are on the dresser); (4) SPI Diamond Tools; and (1) Adapter. Description: (taken from the Spi Catalog 840) "The grinding wheel may be dressed to any desired form - any combination of tangents and/or radii; either convex or concave. * Positive positioning of the diamond with setting gage on dual purpose, reversible diamond holder, included with the dresser; * Provision for Gage Block Setting; * Simple, fast, accurate radius setting by measuring over the two pins with a micrometer, or by inserting gage blocks. Inside or outside radius is determined simply by moving the sliding pin to the right for concave and to the left for convex; * 2 x 90 degree graduation for combined 180 degree reading - 6 minute vernier reading;; * One push-pull type knob for radius and angle control and for safer and faster operations; * ACCURACY: Extremely close tolerances are held in the manufacture of this tool, assured by hardening and precision grinding of all critical parts; * ECONOMY: Set-up and dressing time reduced to a bare minimum due to simplicity". SPECIFICATIONS: (Taken from the Spi Catalog #840 & 920) * Maximum Wheel Diameter Standard 10" * with Extension 15" (I am not certain what the addl. adapter or extension that is included is for) * Internal Radii 5/8" - 1 5/8" * with Rat-tail adapter 1/32" - 1 5/8" * Height from base to center 4 3/32" * Tangent travel, either side of center 1 5/8" * Weight - Dresser (no case) 17 lbs (with case) 23 lbs * Overall Length: approx. 13 1/2" * Overall Height: approx. 6 1/4" With This Item You Will Also Receive: * Spi Radius & Angle Dresser Catalog No.: 70-100 Serial No. 1413 * Original Fitted Box Catalog No.: 70-104 * Set of 13 SPI Diamond Tools - 3/8" x 2" (looks like the SPI VM Series - AAA - Concentric Radius Tools with special octahedron diamonds for fine radius work. Catalog No.: 70-102 Please forgive me, but when I measured them they came out to - 3/8" x 1 1/4" (shaft), total length - 1 1/2". * (4) SPI Diamond Tools (please refer to picture for shape and location of diamond) 3/8" x 2 1/2" (040, 032, 062, 125), total length - 3 3/8" (I tried to locate this tool shape - but was unable to find it). Might these be Spi "Full Ball Radius Tools (180 degrees?) * (1) Permattach Rat-tail Diamond in original sleeve - marked BR .032" (radius) which I believe is 3/8 x 3" (total length) * (1) Spi Adaptor or Extension - the original invoice says "Vinco Adaptor" Catalog No.: 70-101 CONDITION: Overall - excellent to excellent plus Dresser: Since I am not a machinist - but have already sold the vast majority of this inventor's machine shop - I can say - without hesitation - that while the dresser may need to be greased/lubed and/or cleaned a bit from sitting in it's fitted case all these years - it is in excellent shape. A few minor nicks and slight oxidation - but it will be a beauty when it is cleaned up. From it's condition - I suspect it was barely (if ever) used. Fitted Case: Also in excellent shape. The metal on the corners and by the handle are oxidized with slight rusty splotchy look - but other than that - it is beautiful. Diamond Set (13): Two are on the dresser and I removed the plastic from the top of one to look at it's shape. As far as I can tell, they are in very good to excellent condition. Diamond Set (4): Again, I removed the top from one to examine the shape. I don't know if they have ever been used. Extension/Adaptor and the Rat-Tail Diamond: The Adapter looks like new. THe Rat-tail diamond shows oxidation w/ that same rusty splotchy look. If you love quality - if you love precision ..... don't miss out on this spectacular, complete package offer! Be sure to add me to your favorites list and check out my other items! (please look at our rules and privacy policy) |
