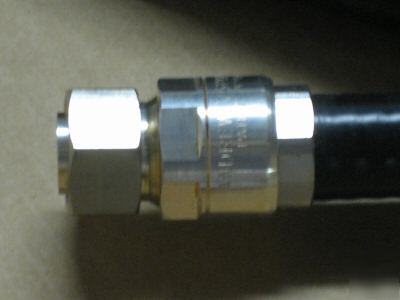

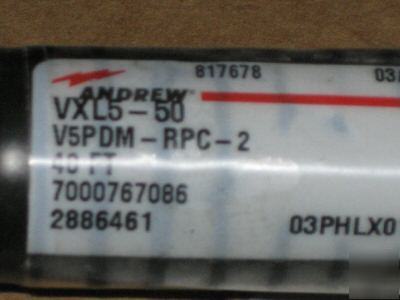

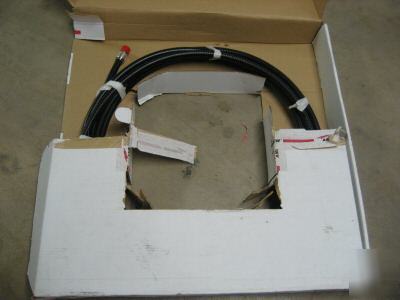

Andrew VXL5-50 with one Din-Male connector. The Din Male connector is factory installed. These are 40 foot coils. Manufacturer Andrew Corporation Table VXL5-50 Product Description7/8" Superflex cable Image Cable Type 7/8" Superflex Impedance (Ohms) 50 Ohms Maximum Frequency 4.9 Ghz VOP. 88% Peak Power (W) 90 kW DC Breakdown Voltage 6000 DC Resistance (ctr/shld) Ohms 0.82/0.36 Capacitance 22.6 pF/ft Inductance 0.06 uH/ft Outer Conductor Copper Inner Conductor Copper Tube Diameter Over Jacket 1.08 in. Min. Bending Radius 5 in. Bending Moment (ft lbs) 12 ft lbs. Weight Per Foot 0.29 lb/ft Tensile Strength 225 lbs. Flat Plate Crush Strength 80 lbs. Atten/100 @ 30 MHz 0.214 db Atten/100 @ 50 MHz 0.278 db Atten/100 @ 150 MHz 0.491 db Atten/100 @ 450 MHz 0.878 db Atten/100 @ 824 MHz 1.22 db Atten/100 @ 894 MHz 1.28 db Atten/100 @ 960 MHz 1.33 db Attenuation @ 1700 MHz Atten/100 @ 1920 MHz 1.94 db Attenuation @ 2000 MHz Avg Power @ 30 MHz 12.3 kW Avg Power @ 50 MHz 9.47 kW Avg Power @ 450 MHz 2.99 kW Avg Power @ 800 MHz 2.19 kW Avg Power @ 894 MHz 2.06 kW Avg Power @ 960 MHz 1.98 kW CWI-292
