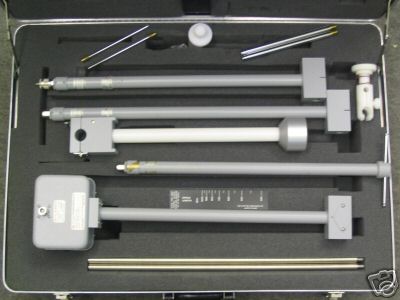

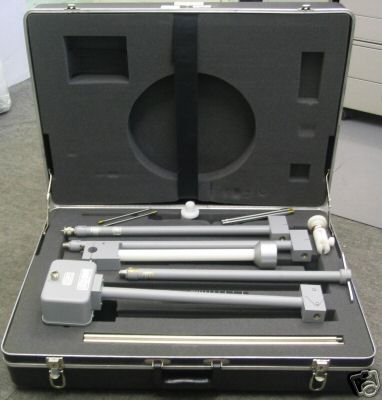

EMCO/ETS Lindgren Dipoles Model 3121C The Model 3121C tuned dipole antenna covers a frequency range of 30 MHz to 1 GHz and its behavior approaches to the theoretically perfect half-wavelength resonant dipole. Each dipole is individually calibrated at 3 and 10 meters per ANSI C63.5, using the preferred three antenna method. All measurement equipment used is NIST traceable. These measurements are made without the use of attenuators, so antenna factors are a true presentation of actual performance. A printout of the calibration data of each antenna is included with the Manual and is also archived. Individual calibration and actual factors are preferred over typical or theoretical factors and provide confidence of test data * Base drilled to accept EMCO or other tripod mount with standard 1/4 in x 20 threads * Four baluns (DB1-4) Orders for individual balun models include elements. Mounting assembly PN 101947 must be ordered separately for tripod mounting. * One high frequency ruler for DB4 * Two low-frequency adjustable elements * Two medium frequency adjustable elements This item is fully checked and working, complete with 30 days warranty and operator/user manual. It is used but in excellent 'as new' condition * Mainland UK: GBP 20.00 Via Citylink * If you are interested in this item please contact me with your full delivery address and ill find you a favourable quote. Please note VAT will be added to all sales where necessary (please look at our rules and privacy policy) |
