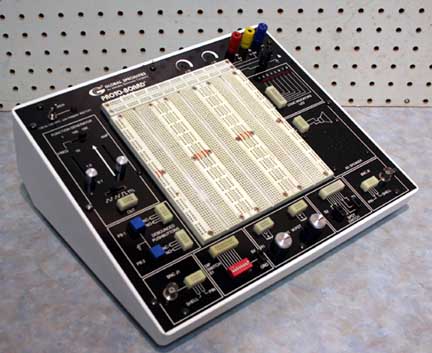

Global Specialties PB-503 Proto Boardwork Station DESCRIPTION: Global Specialties PB-503 Proto-Board Design Workstation , with internal AC. power supply. Frequency Range: 0.1 Hz to 100 kHz in six ranges. Output voltage: 0 to ±10V (20Vp-p). Output Impedance: 600 ohms (except TTL). Output current: 10mA maximum, short circuit protected. Output waveforms: Sine, Square, Triangle, TTL. Sine wave: distortion <3% (10Hz to 100kHz). TTL pulse: rise and fall time <25 nS. drive to 10 TTL loads. Square wave: rise and fall time <1.5µS Two SPDT slide switches, all leads available and uncommitted. 8-pole DIP switch: one side of all eight switches connected and switchable to +5V or ground, other side of all eight switches separate, available, and uncommitted. Three UBS-100 sockets with 840 tie-points each for a total of 2520 uncommitted tie-points. Two QT-59B Bus strips internally connected to power and ground. Fifty tie-points each for +5V, +V,=15 V and ground. 8 LED's, active high, 1.4 volt (nominal) threshold, inputs protected to ±20 volts. DEBOUNCED PUSH-BUTTON (PULSERS): Two pushbutton-operated, open-collector output pulsers, each with one normally-open, one normally closed output. Each output can sink up to 250 mA. One 1 K ohm, one 10 K ohm, all leads available and uncommitted. Two BNC connectors, pin available and uncommitted, shell connected to ground. PB-503: 6.5" H x 16" W x 11.5" D PB-503C with case: 14" H x 19" W x 7" D 3-wire AC line input (117V, 60 Hz typical) with power-on indicator. Both Models are available in 220-240VAC@50Hz Fixed DC output: +5V@1.0A, ripple <5mV. Variable DC output: +1.3 V to +15V@0.5A, ripple <5mV. Variable DC output: -1.3V to -15V @ 0.5A, ripple <5mV. (please look at our rules and privacy policy) |
