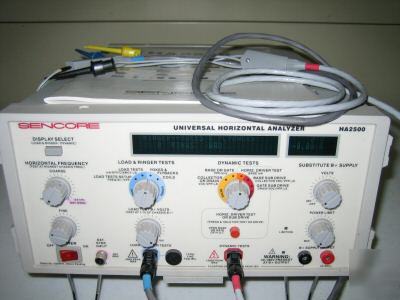

WOW!!! 1/5 of Retail Price!!!! HA2500 Universal Horizontal Analyzer Features Unique frequency lock and variable horizontal frequency use allows you to quickly service all horizontal circuits no matter the frequency Exclusive "Horizontal Output Load Test" makes setup and testing a snap - even without applying AC power for more accurate estimates, fewer damaged replacement parts, and faster diagnosis and repair Patented "ringer" proves the condition of flybacks and yokes in seconds - even a single shorted turn Exclusive "Dynamic Tests" help you analyze the horizontal circuit in powered-up conditions to catch even subtle defects in the power supply, noise, and drive signal Variable-current limited & protected B+ substitute power supply permits testing of horizontal stages even when the power supply is dead Portable and field rugged to go on location when bringing the defective product to your bench isn't feasible HA2500 Condensed Specifications HORIZONTAL FREQUENCY GENERATOR FUNCTION: - Squarewave generator for Load Tests and Sub Drive functions. FREQUENCY RANGE: 15 kHz to 125 kHz INPUT SIGNALS: - Horizontal Sync, Composite Sync, Composite Analog Video (± Polarity) FREQUENCY RANGE: 15 kHz - 125 kHz SENSITIVITY: Composite Analog Video > .5 VPP Horiz. or Composite Sync > 2 VPP HORIZONTAL OUTPUT LOAD TEST B+ POWER SUPPLY VOLTAGE RANGE: - 0 - 18 VDC ± 0.5 volts. HORIZONTAL OUTPUT LOAD TEST SETUP EXCITATION DRIVE: Squarewave 50% duty cycle ± 2% B+ VOLTS RANGE: 0 - 19.9 volts VPP RANGE: autoranged 0 - 400 VPP TIME µS RANGE: 0.1 µS - 50 µS TIME µS TRIGGER LEVEL: 5% ± 1% of pos. pulses with VPP > 10 VPP FUNCTION: Approximate coil "Q" determined by exciting the coil and counting ringing cycles to a damped level. DYNAMIC TESTS (Collector or Drain Meter) VDC RANGE: Autoranged, 0- 400 volts VPP RANGE: Autoranged, 0 VPP to 1500 VPP TIME µS TRIGGER LEVEL: 5% ± 1% of pulse VPP >20 VPP DYNAMIC TESTS (Base or Gate Meter) DYNAMIC TESTS (Horizontal Driver Test) FUNCTION: Measures the horizontal driver stage output current capability by simulating a low impedance base/emitter transistor junction. FUNCTION: Substitute drive optimized to properly drive the base or gate of any horizontal output transistor. BASE SUB OUTPUT: Squarewave 50%, -2/+6% duty cycle GATE SUB OUTPUT: Squarewave, 50% duty cycle ±2% VOLTAGE RANGE: 30 volts to 180 volts POWER OUPUT: 2 amps ± 10% to 40 volts, 80 watts ± 10% over 40 volts POWER LIMIT RANGE: 3 watt (min.) to 80 watt 600 volts (DC + peak AC) from "-" terminal to chassis ground with 500 µA DIGITAL DISPLAY: Vacuum fluorescent matrix, 40 x 2 AC POWER: 105 to 125 VAC 50/60 Hz. May be factory converted to 220 VAC. SIZE: 6" X 11.5" X 15.5" (15.2 X 29.1 X 39.3 cm) HWD All specifications allow for 20 minutes of warm-up and are guaranteed at 15 to 35 degrees C. (please look at our rules and privacy policy) |
