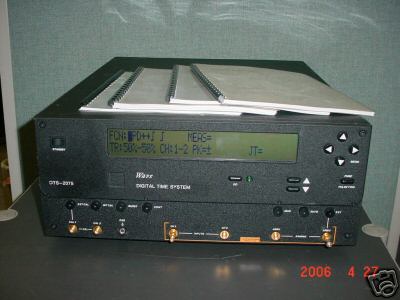

WAVECREST DTS-2075 Digital Time System The WAVECREST DTS-2075 provides the picosecond accuracy, femtosecond resolution, low noise floor and high-speed needed for the rapid characterization of semiconductor devices in the time, frequency and modulation domains. The DTS-2075 helps design and characterization engineers fully analyze all aspects of jitter and other critical timing parameters of high frequency clocks and data communication devices, including pulse width, phase, propagation delays, rise and fall times, and period and frequency jitter components. Operating either synchronously or asynchronously, the DTS-2075 is ideal for both stand alone benchtop operation and integration into ATE systems for use in production. The DTS-2075 permits 100% correlation of characterization and final test by directly supporting both applications. Frequency Range: 0.4Hz to 800MHz Jitter Noise Floor: < 6ps rms (3ps rms typical at cal frequency) (1) Jitter Measurement Accuracy: < 2ps (2) Time Measurement Range: ±2.5s Frequency Measurement Range: 1PPM Time Base Stability (Short Term Aging): 5x10-11 VREF Accuracy: ±(1.0 mV+0.05% of setting) * Internal calbration function not working This item also includes a set of Manuals (DTS-2075 Test List Option User's Guide; DTS-2070 User's Manual;DTS-2070 Operator's Guide; DTS-2070 IEEE-488 Interface Guide) and Power Cord * Our hours of operation are M-F, 10-5PM Pacific Standard Time. Phone: (***) 257-2445 Fax: (***) 257-6310 (please look at our rules and privacy policy) |
