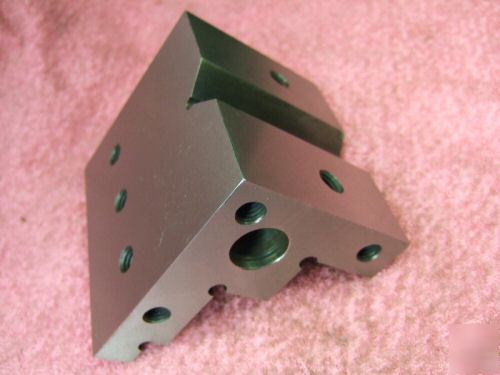

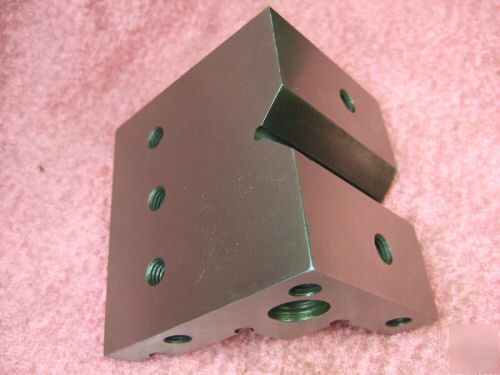

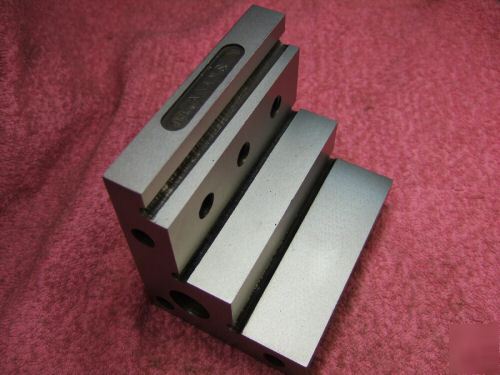

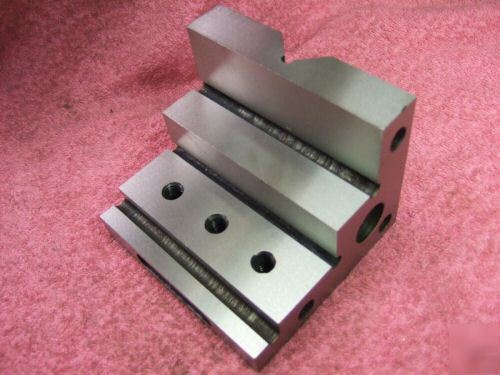

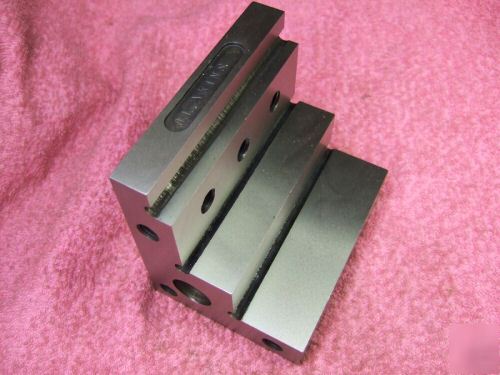

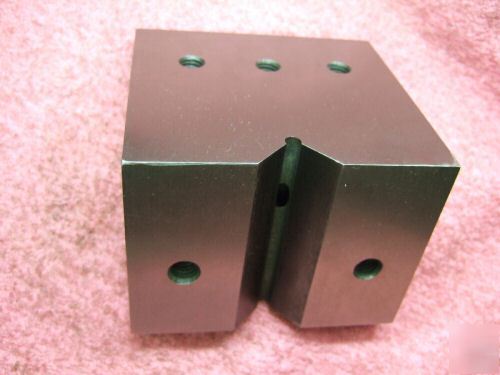

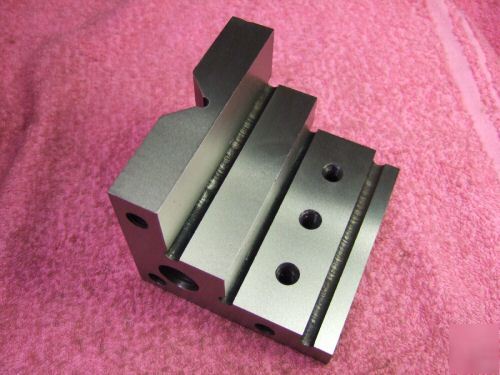

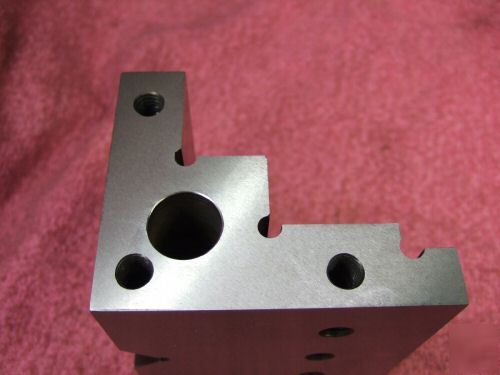

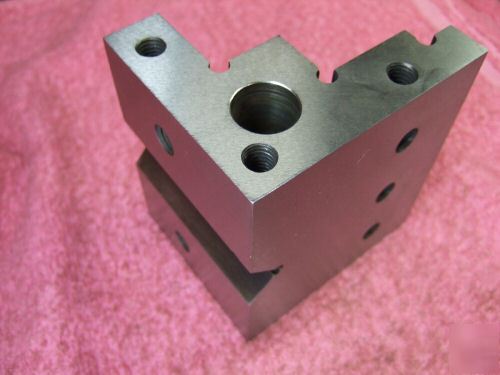

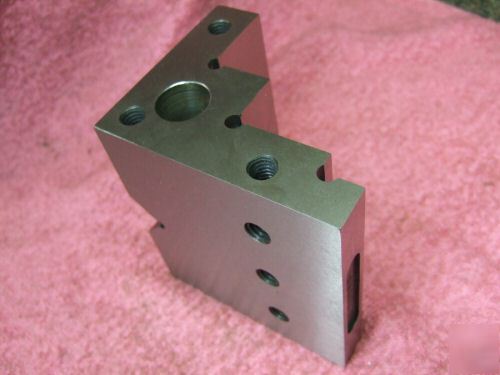

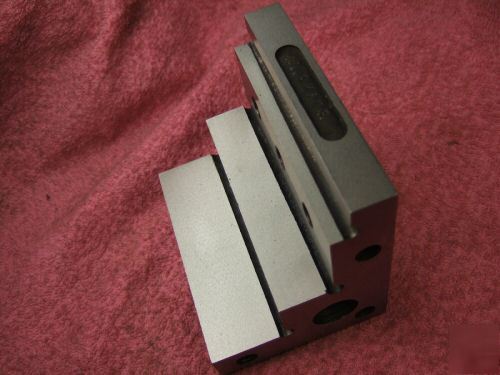

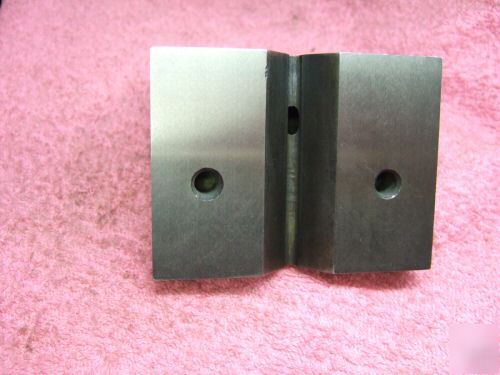

ANGLE PLATE STEP WITH (1) VEE 1" WIDE APPX. IN SHORT FACE MINT AS SHOWN. MACHINIST TOOLMAKER GROUND WITH 3/8" X 16 (11 TOTAL) AS SHOWN IN PICS AND IS AS PURCHASED FROM TOOLMAKER. PLATE HAS BEEN TOTALLY GROUND ON ALL SIDES USING HERMANN SCHMIDT SQUARING BLOCK AND BALL-WAY SURFACE GRINDER. MADE FROM A2 TOOL STEEL AND HARDENED AS SHOWN. ANGLE PLATE MEASURE 4.005" WIDE x 3.685" x 3.02". STEP IS APPX. .96" X .86". SMALLER STEP IS .285" DEEP AND IS .556" FROM TOP FO LONGEST FACE DOWN. THE LONGEST FACE HAS (3) TAPPED 3/8" X 16 HOLES IN ITS FACE . SHORTER LEG HAS (2) TAPPED HOLES 3/8" X 16. AS SHOWN IN FACE NEAR THE 1" VEE. SEE PICS. TOTAL TAPPED 3/8" X 16 HOLES IS (11) HOLES ON FACES. ALL HOLES APPEAR IN GOOD CONDITION WITH NO TAPS OR BOLTS BROKEN IN THEM. EXTREMELY NICE WELL MADE TOOLMAKER TOOLS WITH NAME NEATLY STAMPED INTO ANGLE BLOCK PRIOR TO HEAT-TREAT AND GRIND PROCESSES. WE HAVE MANY TOOLS LISTED BY THIS AMERICAN TOOLMAKER! BE SURE TO CHECK OUR STORE FOR MANY MORE NICE HARD TO FIND TOOLMAKER ITEMS. SEE PICS. SEE PICS AND ASK ANY QUESTIONS. BE SURE TO CHECK OUR STORE FOR MANY MORE OF THESE INCLUDING MOORE TOOLS AND HERMANN SCHMIDT 1-2-3 BLOCKS IN OUR STORE SEE PICS. BE SURE TO SEE OUR STORE FOR MANY MORE NICE TOOLS INCLUDING HERMANN SCHMIDT RADIUS DRESSERS,KUHN RADIUS DRESSERS AND J&S RADIUS DRESSERS. TAFT-PEIRCE INSPECTION TOOLING ATCO VISES,ANTON VISES, SUBURBAN TOOL ANGLE PLATES AND MANY OTHER NAME BRAND TOOLMAKER TOOLS! Questions? Contact us m_byrd@machine--tools.com We usually have consumable items from many manufactures Check back frequently as our inventory is always changing! * You can contact me direct at m_byrd@machine--tools.com * Make sure you have your spam controls set properly, if you are not getting my emails, check your spam folder! * Attention AOL users, the spam controls at aol are especially bad! If you feel I am not responding to your emails, check your spam filters! I respond to ALL emails. (please look at our rules and privacy policy) |
