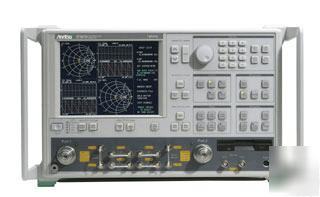

NOT ACTUAL PICTURE OF UNIT BEING SOLD 2A...HIGH SPEED TIME DOMAIN CAPABILITY 10A...HIGH STABILITY TIMEBASE AND 1 Hz FREQUENCY RESOLUTION Anritsu 37397C Vector Network Analyzer System, 40 MHz to 65 GHz The Anritsu 37397C network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest. Anritsu 37397C network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Anritsu 37397C network analyzers also can perform ratioed measurements (including phase), which require multiple receivers. The Anritsu 37397C can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response. YOUR COMPLETE TEST AND MEASUREMENT PROVIDER!!! (please look at our rules and privacy policy) |
