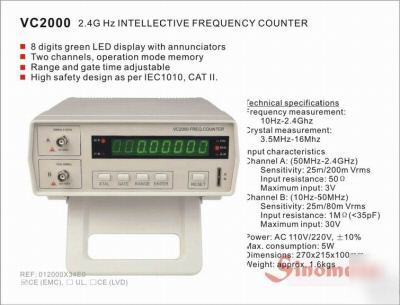

MASTECH VC2000 HQ Bench Frequency Counter Dual Channel - 10Hz - 50 MHz & 50 MHz - 2.4 GHz This is a very high quality bench frequency counter and comes with an AC power cable, BNC test leads and instructions. The system is brand new in the original box and comes with an excellent one year warranty. It is manufactured by Sinometer which is one of the world's largest manufacturers of test equipment. The frequency counter has two BNC inputs for the following frequency ranges: 10Hz to 50 MHz and 50 MHz to 2.4 GHz. The frequency of crystal oscillators can also be measured within the range of 10Hz through 5 MHz. Pulse counting is also supported. Gate time selection has four ranges, the function select has five ranges, the LED is eight digits and the counter has a memory function to automatically recall the last settings after it is turned off and on. Additional Sinometer Mastech VC2000 specifications Operating Temperature : 40 - 120 ( 5 - 50C) Specifications of Frequency Counter VC2000 This VC2000 is an intelligent multi-function instrument which measures Frequency, Pulse counting, Crystal. It has 4 step gate time, 5 range function select and 8 digits display. All functions depend on single CPU, A crystal controlled temperature circuit provides constant compensation for the temperature drifting. There are 3 input terminals on this instrument: CHA. High frequency 50 MHz - 2,4000 MHz CHB. Low frequency 10Hz - 50 M Hz Crystal Oscilloscope: for crystal measurement Crystal Oscillator Measurement Gate Time: 0.1S,1.0S,5.0S, 10S Accuracy: Time base deviation X frequency +- 1 d Progressive Counting measurement resolution: +- 1d, counting frequency: 10Hz - 4Mhz Input sensitivity for CHA 25mVrms/200m Vrms Input impedance: approx. 50 Ohm Input sensitivity for CHB: No.2 range 25m Vrms/80 m Vrms Input impedance: approx. 1 M ohm ( less than 35 pF) Short term stability: +- 3 X 10-9/second Long term stability: +- 2 X 10-5/Month Temperature: +- 2 X 10-5/10oC - 40o C PO Boxes, APO, AK or HI extra. (please look at our rules and privacy policy) |
