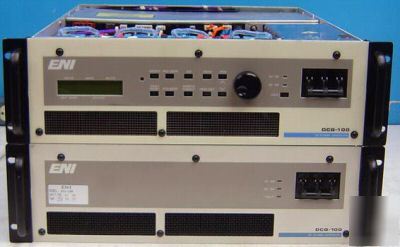

ENI DCG-100 DC Plasma Generator Master and Slave Set Comes with what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from ENI and may vary slightly due to upgrades, options, or revisions this unit may or may not have. We have no way to test these units. The Top Unit's Serial Tag Reads: Model Number: DCG6M-A111000010 The Bottom Unit's Serial Tag Reads: Model Number: DCG6M-A112000010 Electrical Tag on the Top Unit Reads: 200-208 Volts, 3 phase 4W+G, 45 Amps per phase, 50/60 Hz, Level 1 5kW to 30kW DC Power for Plasma Applications: Power Output: 5kW to 30kW in 5kW increments Power: 10.5kW for 10kW output; proportional at other power levels Regulation Modes: Volts, Amps, Watts Output Control Modes: Ramping, Time, Run, Joule, Sequence, Constant Run Load Regulation: ±0.1% for 2:1 load impedance range Line Regulation: ±0.1% for either a ±10% line voltage change or ±2% line frequency change Independent of regulation mode: +/-0.1%: 10-100% or rated output +/-0.2%: 1-10% of rated output Standard: Senses arc within 20µsec, independent of set point. Standard: Programmable from 200µs to 50msec. Line-to-Output Efficiency: >90% Input Power Factor: 0.8 at maximum power output Fully Functional: Provides complete control and monitoring from the master unit Remote: Provides complete remote control and monitoring functions Cooling System: Forced air; front panel & right side in, rear panel out EMC & Safety Compliance: EN50081-2: 1992 Group 2 Class A; EN50082-2:1995; UL 1950; EN 60950 1988/AM1: 1990; CSA C22.2 No.234-M9 Shock Resistance (certified to meet): * IEC 68-2-29 test Eb for bump * IEC 68-2-6 test Fc for vibration * IEC 68-2-31 test Ec for topple (please look at our rules and privacy policy) |
