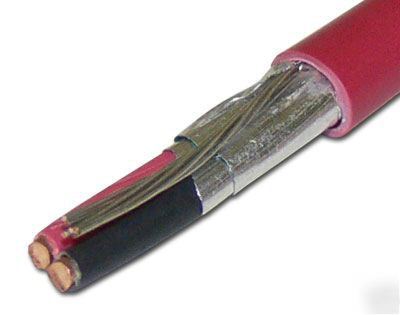

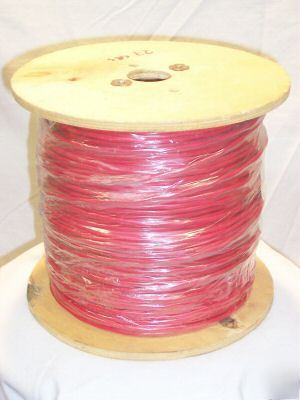

COMTRAN CORPORATION E111271 (UL) Type FPLR RED 2 Conductors/ 16 AWG SBC (Solid Bare Copper Conductor) With Foil Shield, Stranded Drain, and Sequential numbering DESCRIPTION: 16 AWG 2 conductor shielded fire alarm cable Nom. O.D. (in.) Conductors: 16 AWG solid bare copper Insulation: 0.007†nominal wall SR PVC .065 Core Assembly: 2 conductors cabled together with a left hand lay Shield: Aluminum/polyester tape helically applied with the foil side out Drain Wire: 22 AWG 7 strand tinned copper helically applied over the foil shield Jacket: 0.014†nominal wall Red PVC .161 Parallel rip cord located under jacket. SPECIFICATIONS: UL 1424, Power-Limited Fire-Protective Signaling Circuit Cables CERTIFICATIONS: UL Listed Type FPLR California State Fire Marshal Approved Capacitance: 72 pF/ft nominal conductor to conductor @ 1 KHz DC Resistance: 4.18 ohms/Kft max @ 20C SURFACE PRINT: E111271 16 AWG (UL) TYPE FPLR SHIELDED Sequential footage markers every 2 feet 5220FL Non-Paired - Commercial Applications - 2 Conductors Cabled 8911R Non-Paired - Commercial Applications - 2 Conductors Cabled At $202.00 retail price… copper is up to $1.20/ lb… 16 AWG bare copper conductors, PVC insulation, conductors cabled together, foil Shield and drain wire, PVC jacket with ripcord, sequential footage marking every two feet. Suitable Applications Fire Protection, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits Conductor Material- BC (Bare Copper) Insulation Material PVC- Polyvinyl Chloride (RED) Nom. Insulation Wall Thickness- .014 in. Overall Cabling Lay Length- 3.00 in. Overall Cabling Twists/ft.- approx. 4.0 Overall Cabling Color Code Chart : Number Color Outer Shield Material Aluminum- Foil/Polyester Tape Outer Shield Drain Wire- AWG 20 Outer Shield Drain Wire Stranding- 7 Outer Shield Drain Wire Conductor Material TC - Tinned Copper Outer Jacket Material PVC - Polyvinyl Chloride Overall Nominal Diameter- .161 in. Operating Temperature Range- -20°C To +75°C Bulk Cable Weight- 30 lbs/1000 ft. Max. Recommended Pulling Tension- 75 lbs. Min. Bend Radius (Install)- 2 in. APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE: Other Specification- California State Fire Marshall UL Flame Test UL1666 Vertical Shaft Nom. Capacitance Conductor to Conductor @ 1 KHz= 77 pF/ft Nom. Cap. Cond. to Other Cond. & Shield @ 1 KHz= 139 pF/ft Nom. Conductor DC Resistance @ 20 Deg. C= 3.90 Ohms/1000 ft Nominal Outer Shield DC Resistance @ 20 Deg. C= 7.6 Ohms/1000 ft Max. Operating Voltage - UL 300 V RMS Max. Recommended Current 6.3 Amps per conductor @ 25°C Although We make every reasonable effort to ensure their accuracy at the time of this publication, information and specifications described herein are subject to error or omission and to change without notice. Just because it’s RED… don’t make it Fire Alarm Wire… That’s why we provide some specifications to back it up… remember that when you’re looking at the garage Photos. These are 1000 foot Reels… no more, no less… (300 meters approx.) Be sure to add me to your favorites list! Vendemos solamente productos de alta calidad porque nosotros tenemos mas que 30 anos en esto negocio y no queremos a regresar por productos malas se fueron. Si quiere calidad… Comprase. Si quiere vaina… compre al Mundo de China, donde ellos no saben su lengua. Nuestros clientes saben la diferencia que es trabajo duro. Instructions and Policies of Sale Confirm also the Exact Item Description, Brand and Color… not by Photo. All Sales are in U.S. Dollars… We charge Virginia Sales Tax to Items delivered to VA addresses. Be Concise and Clear about Delivery details and Addressing Information. We will deliver to your Exporter if you prefer. Return within 30 days for exchange, Will be given as it is received. Remember… Happy, Shiny people. Instrucciones y polÃticas de la Venta Confirme con nosotros, cómo el pago debe ser hecho, dentro de 1 dÃa laboral de cierre. Confirme también la descripción exacta del artÃculo, Marca de fábrica y color… no por Foto. Todas las ventas están en los dólares EEUU … una vez que se haga la confirmación y el pago, El artÃculo es enviado Impuestos, Enviados y Honorarios Cargamos impuesto de ventas de Virginia a los artÃculos entregados a las direcciones del VA. El seguro y otros honorarios asociados al portador están en su discreción. No incluido con el Precio de Venta Esté sucinto y claro sobre los detalles de la entrega e información de la dirección. Para las transacciones mundiales, Aranceles, Los impuestos y los honorarios son el suyo. Completaremos las formas de la información exacta de la transacción. Entregaremos a su exportador si usted prefiere. Estamos parados detrás de lo que vendemos… ¡PERÃÂODO! Diciendo eso… los daños del envÃo son lo que cubre el seguro de los portadores. Confirmaciones de Colores/Especificaciones deben ser hechas en la época de la venta. Impuestos, Los honorarios y los deberes no se podemos revolver porque no los cargamos… ven su gobierno por satisfacción. Deseamos Gente feliz para los clientes de la repetición, sea tan tranquilo si hay un problema, Lo trabajaremos hacia fuera. Vuelva en el plazo de 30 dÃas para el intercambio, Será dado como esa se recibe. Recuerde… Gente Feliz … Correo Electrónico- j-andrews@machine--tools.com (please look at our rules and privacy policy) |
