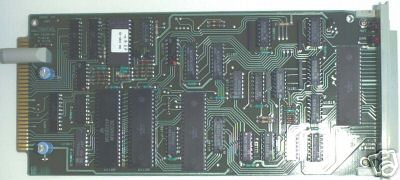

The 50M10 is able to measure analog voltage in four ranges: 100mV, 1V, 10V, 100V. Unlike traditional integrating digital millimeters, the 50M10’s short 400nsec aperture time enables the measurement of voltages which hold their value for short time intervals. A Guard signal at the input connector can drive guard conductors adjacent to the input signal conductor. TTL compatible front panel control lines permit the 50M10 conversions to be triggered or gated. Conversion Results Available over GPIB or Front-Panel Connector. Input Impedance: 100mV-10V Range: >10^10ohms. Digital Data Transfer Format:12-bit word transferred in two bytes. Guard Output Resistance: Typically 870ohm. • Built-in Track-and-Hold Amplifier This card is guaranteed not to be DOA. I am providing a 5-day guarantee on this card. (please look at our rules and privacy policy) |
J-gardner@machine--tools.com (Jack Gardner) for additional information. This email is used for forwarding to newsgroup user.
