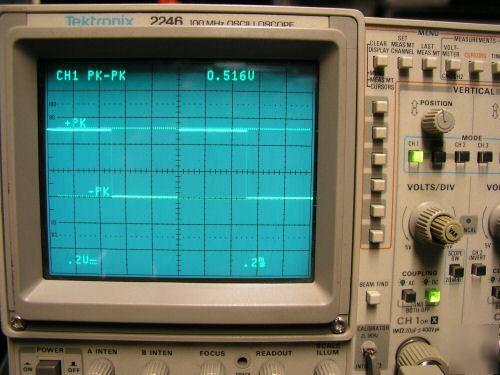

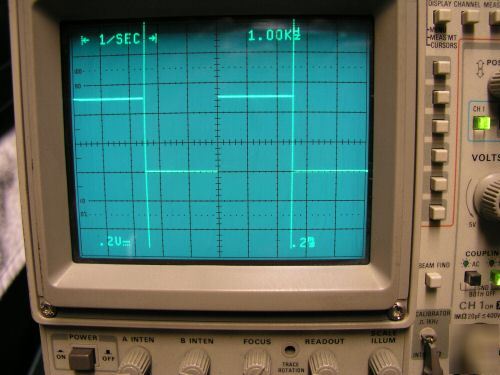

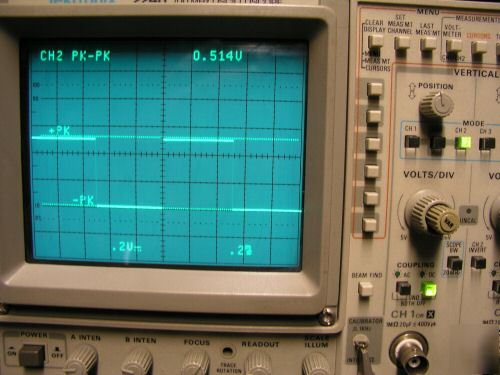

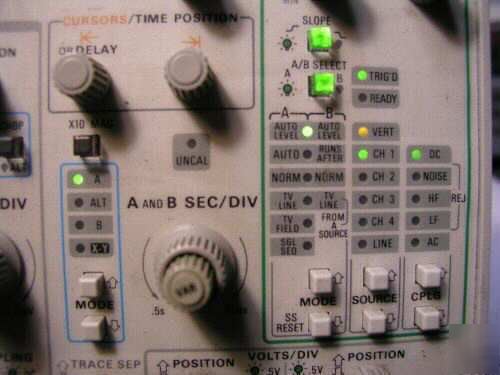

100MHz, 4-channel oscilloscope with a fully integrated, menu-driven voltage and time measurement system with SmartCursors. A service menu provides internal calibration and servicing diagnostics. Channel 1 and 2 deflection factors range from 2mV to 5V per division. Channel 3 and 4 scale factors are 0.1V and 0.5V per division. Vertical and horizontal cursors provide accurate voltage, time, frequency, and phase measurements. The measured -3dB bandwidth of this oscilloscope is 102 MHz for Channel 1, 107 MHz for Channel 2, 126 MHz for Channel 3, and 120 MHz for Channel 4. Photos show the included probe with the internal calibrator as an input signal, as well as a frequency measurement of the internal calibrator with the oscilloscope’s cursors and measurement menu. Included with this instrument are: (1) Tektronix P6133A probe, 10X, 150 MHz (2) AC power cord, (3) Operator's Manual, and (4) Soft Accessory Pouch. The Accessory Pouch was installed on top of the oscilloscope after I took the photos. All knobs, switches, and functions appear to work correctly. This instrument has a fresh battery for saving the front panel settings and should not need replacing for three or four years. This instrument is in excellent electrical and mechanical condition, with only a few scratches in the paint. The serial number is B111253. This unit passes all diagnostics and self-tests. Accuracy of vertical channels and horizontal timebase was verified with a Tektronix CG5011 Programmable Calibration Generator. The Vertical Channel Bandwidths were measured with a Tektronix SG5030 Programmable Leveled Sine Wave Generator. This instrument can be set to work on 120 VAC, 60 HZ, or 220 VAC, 50 Hz by changing the voltage selector switch on the rear panel. Any additional test equipment shown in the photos is not included. Photos show waveforms measured with this oscilloscope, but are not meant to imply this instrument meets all of the original equipment accuracy specifications. This instrument has too many menus and features to describe with words, so please see the close-up photos of the front panel. Most of the labels are easy to understand and all of them are explained in great detail in the included Operator's Manual. (please look at our rules and privacy policy) |
