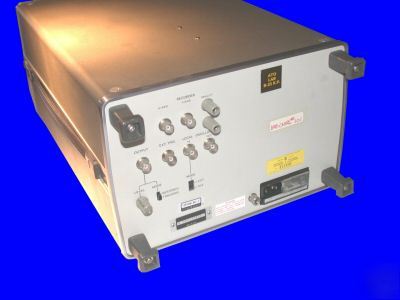

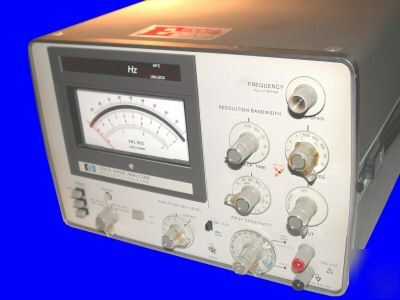

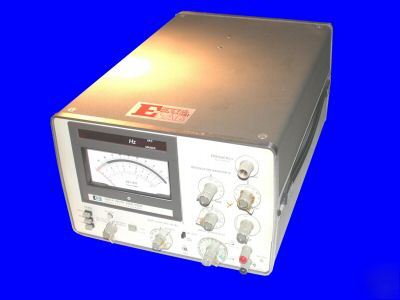

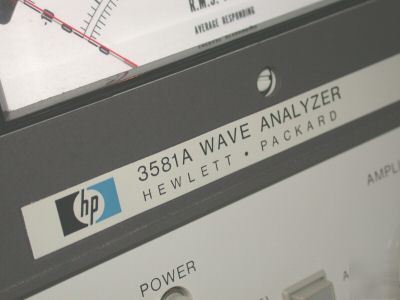

VERY NICE HEWLETT PACKARD WAVE ANALYZER MODEL 3581A The HP 3581A wave analyzer tunes the frequency range of 15Hz to 50kHz, either manually or in swept mode. The sensitivity of the unit is 0.1µV to 100V rms. In the logarithmic mode, the dynamic range is 80dB. The 3581 C is pretty much the the same save with functions specifically designed for the telecommunications industry. The 3581C uses a WECO 310 jack and has selectable inputs for Unbalanced, Balanced Bridged or Balanced Terminated Input. The tracking generator of the 3581C also utilizes a transformer coupled balanced output, and has an audio output. The analyzer also incorporates a tracking generator, accessible at the rear of the instrument, which allows the user to perform network analysis. (The tracking generator is accurate within 1 Hz of the receiver frequency). Bandwidth is selectable via front panel control in increments of 3,10,30,100 and 300Hz. The unit can be swept for time periods of 0.1 to 2000 seconds, swept single-shot or set to a single frequency. In the swept-mode, the 3581 will tell you whether the period is too short! The HP3581A, with the help of an auxiliary oscilloscope or an X-Y plotter may also be used as a spectrum analyzer. X and Y analog outputs of 0 to 5 volts are provided at the rear of the instrument. Pen Lift and External Trigger are also available at the rear. The external trigger is inhibited at -12.0 to +1.4VDC, and is activated for +4.5 to 20.0 VDC. The sweep trigger must be activated for at least 1.0 µS. Note also that after the sweep, the 3581’s circuitry incorporates a delay of 0.2 to 2.0 seconds in order for the IF to settle. Retail Cost of More Than $12,000.00. For more information see, http:// /HP3581/Hewlett%20Packard%20HP.htm Thanks for looking! If you have any question on this item please call us at 1-(***)-826-3433 (9 - 5pm Eastern). (please look at our rules and privacy policy) |
