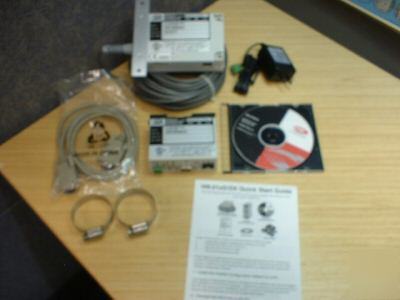

The HN-210D is a versatile, low cost, multi-purpose 2.4 GHz frequency-hopping wireless data modem. Built around the WIT2410 radio, the HN-210D has an integral 6dB patch antenna creating a "single piece" modem. Communication with the HN-210D is through a 115.2Kbps asynchronous serial port supporting a standard RS-232 interface. The HN-210D communicates over the air at 460.8Kbps and supports both point-to-point and point-tomultipoint With a NEMA 4X weatherproof enclosure and aluminum mounting flange, the HN-210D is simple to install on the side of a building or attached to a mast. With no antenna to connect, the HN-210D is simply mounted where the antenna would ordinarily be mounted. This removes the need for long antenna cable runs, expensive both The HN-210D comes with a 50-foot cable that connects to a DIN-rail mount Serial Adapter box (standard RS-232 serial 9-pin D connection) making installation in equipment cabinets simple. The HN-214D comes with just a 4-foot cable when long cable runs are not needed. The Serial Adapter Box also provides power to the HN-210D through a universal 110/220 50/60 wall-mount power The integral 6dB patch antenna provides a line-of-site range of several miles, making the HN-210D ideal for a variety of "last mile" applications. For applications requiring more antenna gain, the HN-210DX replaces the built-in patch antenna with an external When paired with the Cirronet SNAP2410 family of products, the HN-210D provides a cost-effective link from remote devices to Ethernet/IP-based applications. These applications include Intranetbased applications as well as Internet access. The HN-210D also is ideal for use in SCADA applications as remote modems in multipoint configurations and is an extremely cost-effective solution for point-to-point installations. Selectable transmit power levels of 10mW and 100mW allow the HN-210D to be used worldwide even with the gain of the patch antenna. Based on the third generation Cirronet WIT2410 spread spectrum frequency-hopping radio, the HN-210D has exceptional multipath fade rejection as well as immunity to jamming. The WIT2410 is a field proven performer that delivers robust, reliable real world The HN-210D is both FCC and CE marked. Combined with its operation in the 2.4GHz ISM band, the HN-210D can be deployed around the world without a license. • 2.4GHz Frequency Hopping Spread Spectrum Technology • 460Kbps over the air and 115Kbps I/O data rates • FCC Certified and CE marked • Integral 6dB patch antenna • RS-232 asynchronous serial interface • Exceptional immunity to multipath fading and jamming • Supports high speed applications needing long range • Co-location of multiple networks without interference • License-free application worldwide • Cost-effective, simple installation • Connects to PC Serial ports The HopNet 210D (HN-210D) is a versatile, low cost, multi-purpose 2.4 GHz frequency- hopping wireless data modem. Built around the WIT2410 radio, the HN- 210D has an integral 6dB patch antenna creating a “single piece†modem. Communication with the HN-210D is through a 115.2Kbps asynchronous serial port supporting a standard RS-232 interface. The HN-210D communicates over the air at 460.8Kbps and supports both point-to-point and point-to-multipoint networks. Product HN-210D HN-210DX HN-214D 2448 - 2480 MHz (France, Spain) Unlicensed under FCC Part 15, ETSI 300.328 User configurable, 64 patterns (networks) available Dynamically Assigned TDMA with ARQ EIRP: +16dBm/+24dBm +18dBm EIRP: +16dBm/+24dBm -99dBm for 10-5 BER -93 dBm for 10-5 BER -99dBm for 10-5 BER Product HN-210D HN-210DX HN-214D Integrated 6dB Patch n/a Integrated 6dB Patch -30°C to +70°C (radio enclosure) (please look at our rules and privacy policy) |
