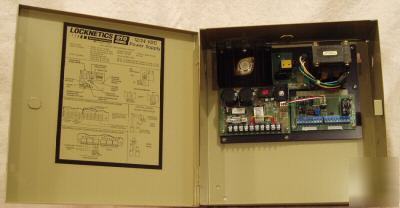

INPUT POWER: 120 VAC 60HZ 1.25 amp OUTPUT VOLTAGE: 12 VDC Nominal (13.8 VDC) OUTPUT CURRENT: 3 amp max. @ 13.8 VDC PRIMARY FUSE SIZE: 1.25 amp, 5 x 20 mm BATTERY FUSE SIZE: 6 amp, 3 AG SECONDARY PROTECTION: Output overload protected by the regulatory circuit CHARGING CIRCUIT: Built-in standard ENCLOSURE: 12"x12"x4" steel NEMA Grade 1 with conduit knockouts and hinged cover with lock down screws COLOR/FINISH: beige/baked enamel WEIGHT: (Power Supply) 11 lbs. INPUT TERMINALS: Barrier strip with (2) #6 screw terminals, protective cover (1) #10 ground screw OUTPUT TERMINALS: Barrier strip with (10) #6 screw terminals (Basic unit only) Output voltage is field selectable by slide switch. With line power applied, a green LED on the circuit board will be illuminated. This indicates constant power on the output terminals. When batteries are included power may be present on output terminals with the green LED illuminated and on line power present. When line power is present the built-in recharging circuit will keep the batteries charged. (please look at our rules and privacy policy) |
