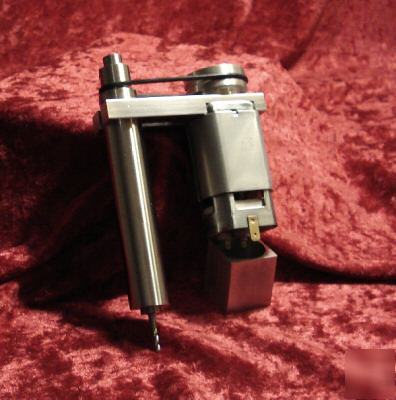

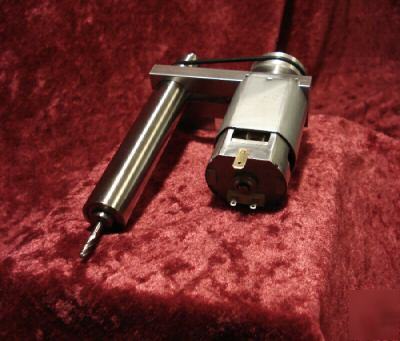

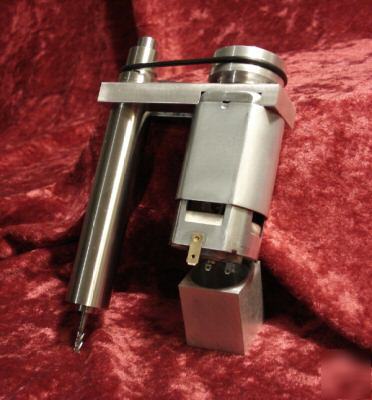

(I apologize for the wait, but this item may take up to 7 business days to deliver) This is the TB-440AC High Speed Spindle. The TB-440AC uses the TB-350S spindle and is coupled with a powerful, fan cooled 115AC motor that can be simply plugged into the wall outlet for use. A pigtail will be provided (not shown in photo) and A very inexpensive "router controller box" can be purchased to vary the speed of the spindle to best suit the material your cutting. The motor rotates at 12,000 rpm's and the pulley is geared up 2.2:1 to bringing the spindle speed to approximately 25,000 rpm's. A very popular speed for most hobbiest needs. Upon request the pulley ratio can be lowered to acheive higher torque. Some of the spindles main features include: * Triple Ceramic Bearing Design Rated at 100,000 rpm's. * High Polish Stainless Steel Housing. Resist Scratches and Won't Tarnish. * 1/8" (.125") Three Split Collet. * Max Recommended Spindle Speed: 60,000 R.P.M. * Average Bearing Life: 1500 Hours. * Spindle Length Measures 6.000" and has A .750" Dia. Body. (please look at our rules and privacy policy) |
